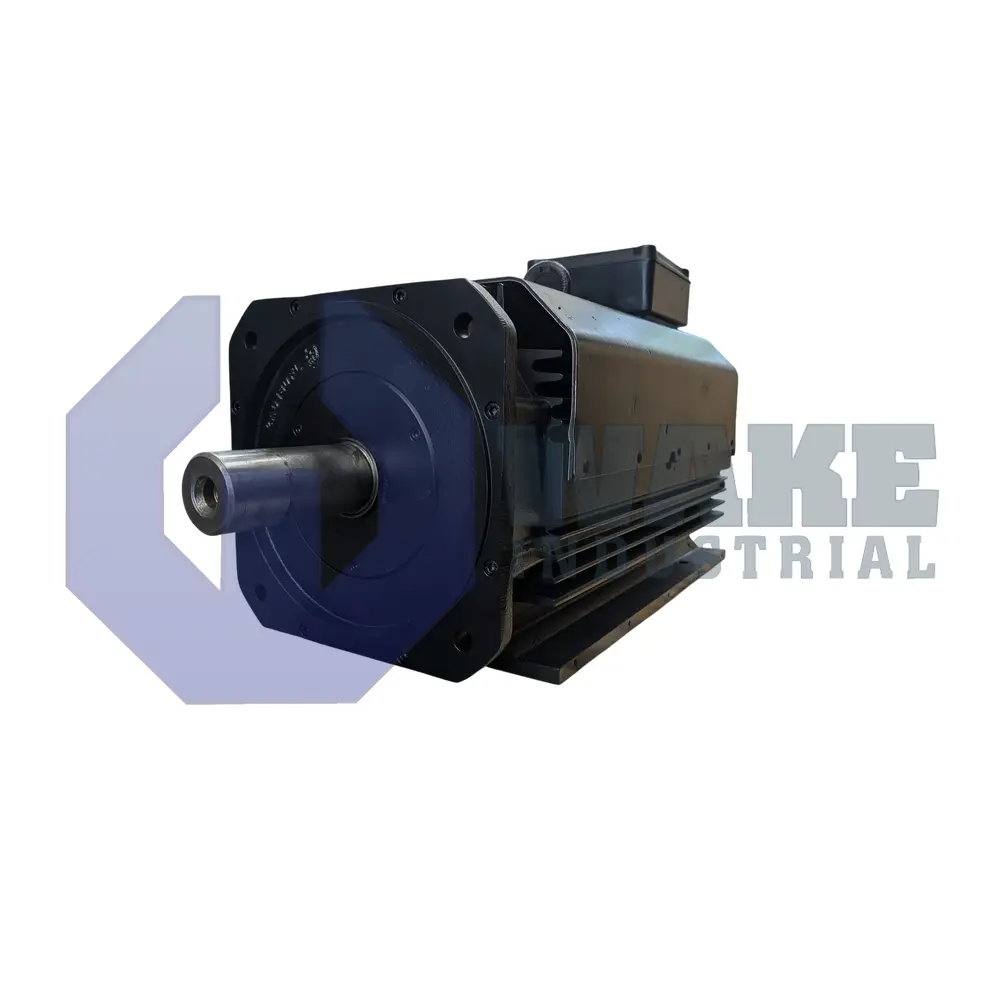

2AD180C-B35OB1-BS06-B2V1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911283980
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Part of the 2AD 3-Phase Induction Motors series by Bosch Rexroth Indramat, the 2AD180C-B35OB1-BS06-B2V1 is a 2AD synchronous AC motor with a frame size of 180 and length C. It features axial blower cooling, IP65 enclosure, and operates at a rated speed of 1500 min⁻¹. The motor supports a voltage range of 380–480V.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The Bosch Rexroth 2AD180C-B35OB1-BS06-B2V1 Asynchronous Servo Motor delivers stable speed and power for demanding mechanical operations. It also guarantees uniform production with 1500 rpm and 52 kW of power capacity.
This 2AD180C-B35OB1-BS06 -B2V1 servo motor draws 110 A of current from the system and has class F insulation standard. It has an axial blower cooling-mode that keeps it thermally efficient on constant use. The motor has the capability to sustain a long period of mechanical pressure and comes with a heavy duty bearing. On line side, the power connection is led along the side B with a terminal box. The 2AD series servo motor is equipped with high resolution digital encoder feedback that enables precise position, velocity and torque control. This digital servo feedback system not only enhances closed loop performance but also facilitates real time diagnostics and performance monitoring. The rotor has a rotational inertia of 0.373 kgxm2. The motor can handle peak rotational speed of 6000 min-1 which provides flexibility in various industrial applications. The motor produces an average A-weighted sound pressure level of 80 dB (A) ± 3 dB that is measured at a distance of 1 meter in accordance with ISO 3744 acoustic testing standards. These specifications make it suitable for dynamic automation and manufacturing environments requiring both power and precision.
The total mass of the 2AD180C-B35OB1-BS06-B2V1 servo motor is 310 kg. Its compact yet solid form factor helps in minimizing vibration and enhancing alignment. The motor does not include a sealing ring, so users should plan for external sealing if the operating environment contains dust or moisture. The absence of a holding brake means it is unsuitable for vertical applications requiring load holding at rest without external support.
Frequently Asked Questions about 2AD180C-B35OB1-BS06-B2V1:
Q: Can the Bosch Rexroth 2AD180C-B35OB1-BS06-B2V1 maintain stable function under heavy mechanical loads?
A: Yes, the 2AD180C-B35OB1-BS06-B2V1 servo motor features heavy-duty bearings for high mechanical stress. This allows it to deliver consistent performance during prolonged demanding operations.
Q: How does the Bosch Rexroth 2AD180C-B35OB1-BS06-B2V1 handle thermal efficiency during continuous operation?
A: It uses an axial blower cooling mode to stabilize internal temperature during continuous workloads. This ensures thermal control without compromising performance.
Q: Will the 2AD180C-B35OB1-BS06-B2V1 servo motor offer smooth acceleration and deceleration?
A: Yes, its rotor has a moment of inertia of 0.373 kg·m². This supports balanced speed transitions under varying load conditions.
Q: Does the 2AD180C-B35OB1-BS06-B2V1 support variable speed in automation setups?
A: It supports a maximum speed of 6000 min⁻¹, which allows flexible speed adjustments. This makes it well-suited for precision-driven automation environments.
Q: Should I consider sealing or braking options with the 2AD180C-B35OB1-BS06-B2V1 motor?
A: The motor lacks both a sealing ring and a holding brake. External sealing and support may be needed for dusty settings or vertical load holding.
