Product Description:

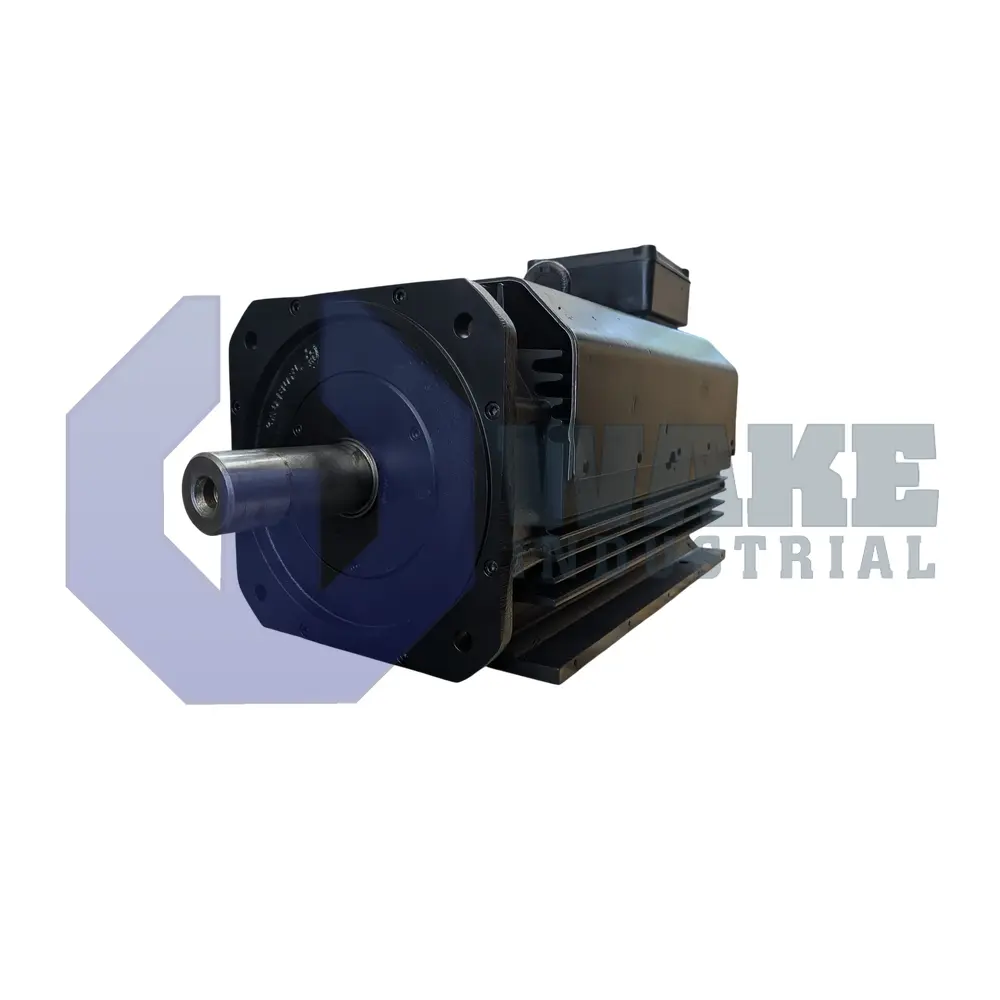

The 2AD180C-B35OB1-BS03-B2N2 belongs to the 2AD 3-Phase Induction Motors series manufactured by Bosch Rexroth Indramat. As an AC induction motor, it supplies constant torque for material-handling axes, packaging lines, and other automated stations that require continuous rotation from a three-phase power system. The motor sits between the drive inverter and the mechanical load, where it serves as the primary electromechanical element in the motion chain. That arrangement allows the paired controller to regulate speed and torque under changing load conditions during normal machine cycles. In operation, it converts the inverter's electrical output into steady rotary motion for connected shafts, belts, or couplings.

Heat is removed by an integrated axial blower, so the stator can sustain full current without relying on cabinet airflow. The motor has a frame size of 180, which gives it a housing suited to mid-range power classes. Its length code of C indicates a medium active iron stack that balances torque output against installation depth. The housing uses flange and foot mounting, allowing either rigid face attachment or base bolting on the same casting. Closed-loop operation is supported by high-resolution motor feedback, which sends position data to the drive for real-time current adjustment.

The motor is supplied without a holding brake, so applications that require static holding must use external clamping or drive torque. Power conductors enter through a top-mounted terminal box on side B, which can simplify cable routing along the machine's non-drive side. This layout also keeps the connection area accessible at the top of the housing during installation. The rotor is balanced with the key installed, reducing the need for additional trim balancing when pulleys or couplings are fitted. The motor is built to vibration grade S, which supports smooth operation at rated speed and helps limit mechanical disturbance to connected equipment.
