Product Description:

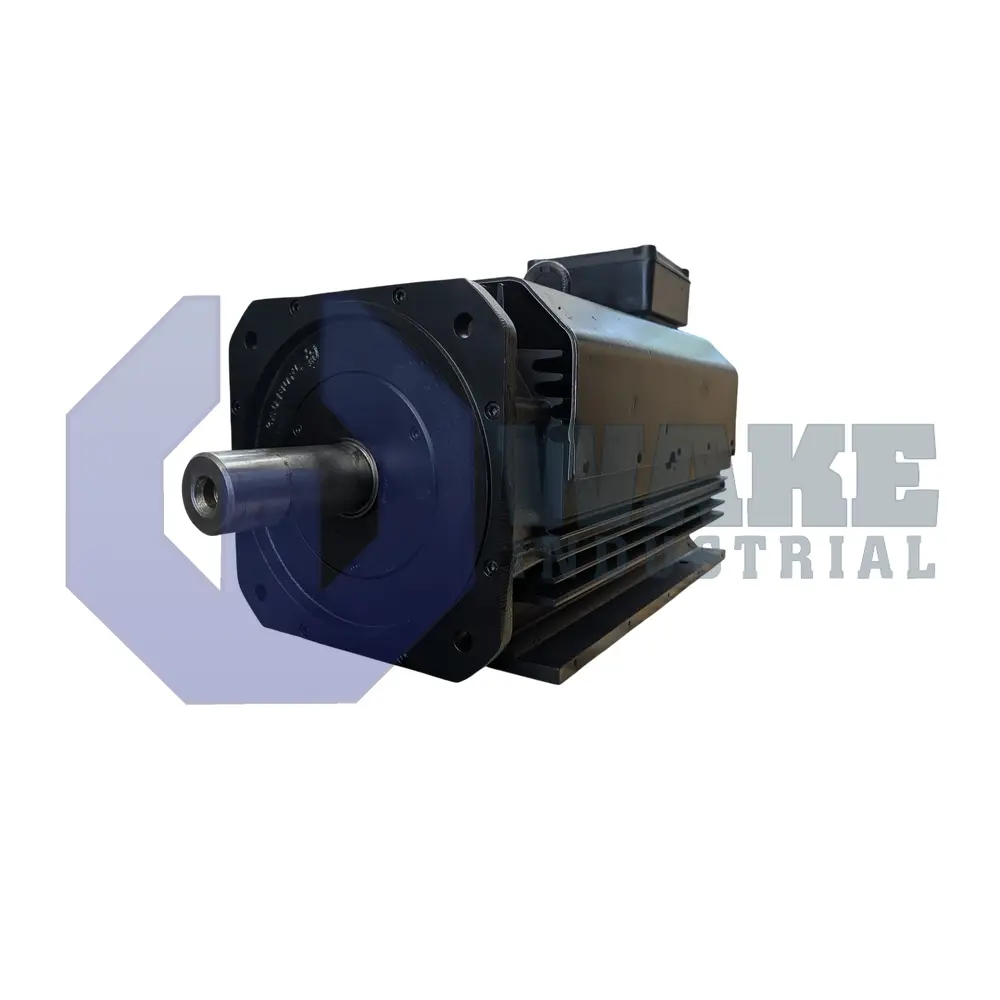

The 2AD180C-B35OB1-BS03-B2N1 is an AC induction motor manufactured by Bosch Rexroth Indramat and supplied in the 2AD 3-Phase Induction Motors series. The model is intended for integration into industrial automation cells where constant-speed rotation is required to drive gearboxes, spindles, or conveyor shafts. Its cast-iron stator body supports extended-duty operation in applications that require a rigid motor housing and dependable mechanical stability. This operating profile suits production equipment where steady rotary output is needed across long running periods.

Heat is removed by an axial blower mounted on the rear cover, so forced airflow helps keep winding temperature within limits under load. The motor uses flange and foot mounting, allowing the frame to bolt either to a faceplate or to a base rail without adapters. The frame uses size code 180, which places the motor in the IEC 180 class for this housing size. Position data are supplied through high-resolution motor feedback, giving the connected drive precise incremental information for closed-loop regulation. The unit is supplied without a holding brake, so any static load retention must be provided by external equipment.

A terminal box is mounted on the stator top, so the main power connection can enter through the factory cable glands while keeping wiring access straightforward. The cable entry faces Side B, which can simplify routing when the motor is installed beside the driven machine. The motor uses length code C, indicating the corresponding stator core length for this frame. The assembly also meets vibration grade R, which supports smooth running on precision frames. The rotor is dynamically balanced with the complete key inserted, and the shaft exits only on the A-side while the B-side remains enclosed.
