2AD164B-B05OA1-BS07-H2N1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911288977
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

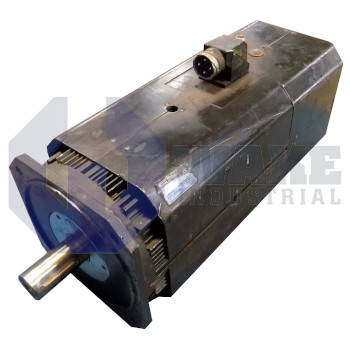

The 2AD164B-B05OA1-BS07-H2N1 is an AC Synchronous Servo Motor with a frame size of 164 mm and flange mounting. Manufactured by Bosch Rexroth Indramat as part of their 2AD 3-Phase Induction Motors series, it offers a keyed output shaft with a sealing ring and an IP65 protection class. This motor utilizes axial blower cooling.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The model 2AD164B-B05OA1-BS07-H2N1 is an advanced asynchronous servo motor suited for demanding industrial automation. It works efficiently with digital drive systems like INDRADRIVE, DIAX and ECODRIVE. This motor provides high power density and flexible control features. The model enables precise motion control and energy efficient performance across various machine applications.
This 2AD164B-B05OA1-BS07-H2N1 Servo Motor from Bosch Rexroth is rated at 37.7 kW and delivers 180 Nm of torque under continuous operation. It operates at a rated speed of 2000 rpm while it can reach up to 6000 rpm at maximum speed. The derating speed is specified at 1500 rpm that allows reliable performance in load sensitive applications. It includes a thermal time constant of 60 minutes that contributes to stable thermal behavior over prolonged use. The permissible ambient temperature range for this servo motor is from 0 °C to + 40 °C. The motor incorporates an axial blower for cooling with air guided from side B to A. The operation of this 2AD series motor always requires this blower for proper airflow along the motor surface. The noise level is measured at 75 dB (A) that is suitable for industrial environments with acceptable acoustic performance. The feedback of this motor is handled through a digital servo feedback system with a multiturn absolute encoder that provides high resolution position tracking. The encoder offers 512 cycles per revolution and tracks up to 4096 revolutions.
The 2AD164B-B05OA1-BS07-H2N1 servo motor is designed with a flange configuration. The output shaft comes with a full key and is balanced. This ensures precise torque transmission and vibration minimization. A sealing ring is integrated into the design to enhance protection against contaminants. However, this version of the motor does not include a holding brake. The standard bearings are used for general purpose industrial use.
Frequently Asked Questions about 2AD164B-B05OA1-BS07-H2N1:
Q: What are the integration considerations for using the 2AD164B-B05OA1-BS07-H2N1 motor with high-speed drive systems?
A: It is designed for compatibility with digital systems like INDRADRIVE, DIAX, and ECODRIVE. This supports flexible integration and optimized control in fast-cycle automation.
Q: How does the 2AD164B-B05OA1-BS07-H2N1 motor manage thermal stability during long-duration load cycles?
A: It uses a 60-minute thermal time constant to gradually absorb and dissipate heat. This allows steady performance under sustained mechanical and electrical stress.
Q: What motion feedback architecture is implemented in the 2AD164B-B05OA1-BS07-H2N1 servo motor for accurate positioning?
A: It features a multiturn absolute encoder with 512 cycles per revolution and 4096 revolutions tracking. This ensures precise closed-loop control across wide travel ranges.
Q: Can the 2AD164B-B05OA1-BS07-H2N1 maintain consistent airflow and temperature under full-load industrial conditions?
A: Yes, it includes an axial blower that channels air from side B to A across the motor body. Continuous cooling is mandatory for maintaining safe operating temperature.
Q: How does the shaft configuration in the 2AD164B-B05OA1-BS07-H2N1 motor impact torque delivery and mechanical stability?
A: The full-key balanced shaft reduces oscillations during load shifts. It ensures accurate torque transfer with minimal vibration across mounting interfaces.
