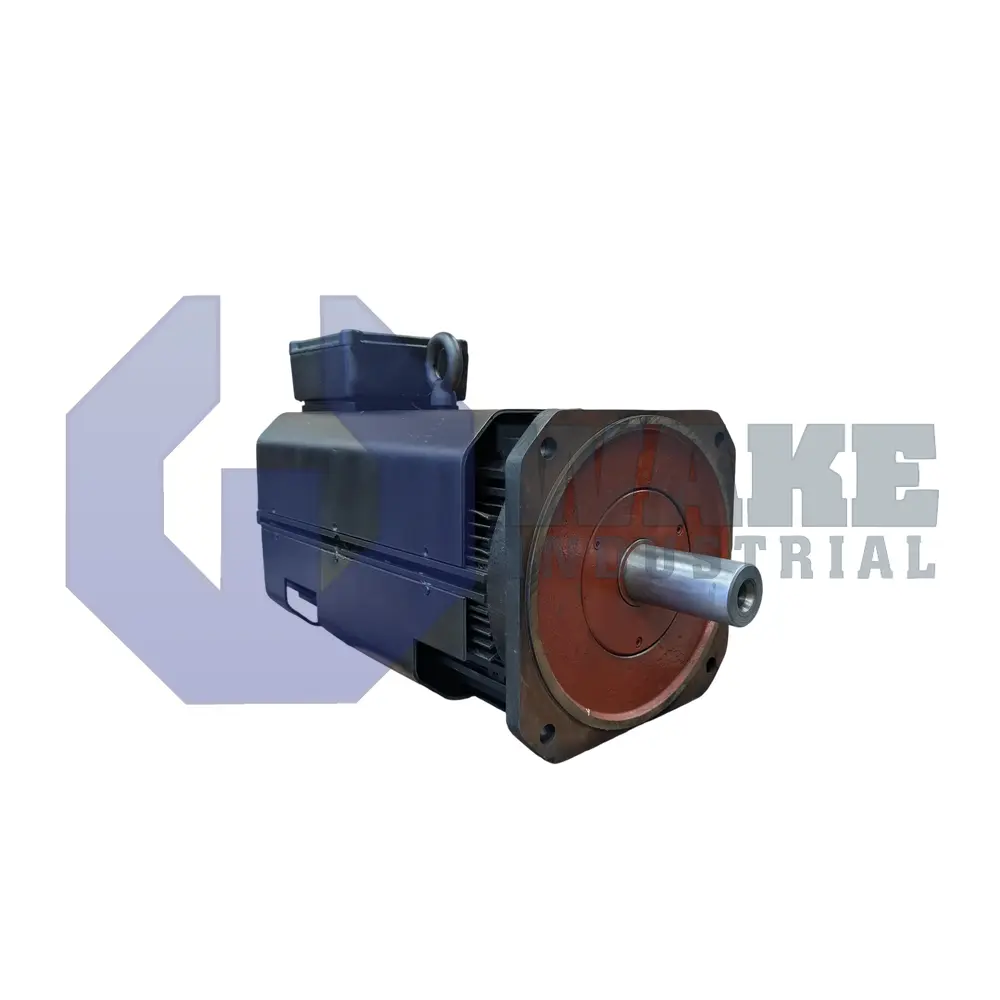

2AD160C-B35OB1-DD03-B2V1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911284038
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The 2AD160C-B35OB1-DD03-B2V1 is a synchronous servo motor with a continuous stall torque of 68 Nm and a frame size of 160 mm. Manufactured by Bosch Rexroth Indramat, this motor is part of the 2AD 3-Phase Induction Motor Series and features IP65 protection. It employs a blower cooling method and weighs 70 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 2AD160C-B35OB1-DD03-B2V1 is a 2AD 3-Phase Induction Motor which is a product of Bosch Indramat. Its rated power is 46 kW which offers high efficiency and reliability for industrial applications.
The 2AD160C-B35OB1-DD03-B2V1 induction motor is designed for demanding environments and applications that require precision and durability. It has a nominal current of 109 A which delivers consistent performance. The rotor inertia of 0.299 kgm² ensures stable operation at varying loads. It is equipped with heavy duty bearings for enhanced reliability and a longer lifespan. The motor operates at a nominal voltage of 316 V suitable for standard industrial power supplies. It has an axial blower for effective cooling. The 2AD160C-B35OB1-DD03-B2V1 induction motor insulation classification is F ensuring safe and efficient operation at high temperatures. It has a thermal time constant of 65 minutes allowing for efficient heat dissipation. The motor is designed with flange and foot mounting for versatile installation. Its vibration severity grade is R indicating low operational vibration for smoother performance. The motor clamp delay is set at 60 ms ensuring precise control in dynamic applications. Its nominal torque is 220 Nm providing sufficient power for various machinery. The feedback system is a high resolution motor feedback for improved accuracy. The average sound pressure level at 1 meter is 75 dBA ensuring quieter operation. It is also capable of reaching a maximum speed of 6000 min-1 ensuring high speed performance.
The 2AD160C-B35OB1-DD03-B2V1 induction motor with a medium air volume of 1120 m³/h maintains efficient airflow for cooling. Its minimum connection cross section for cables is 35 mm² providing secure and efficient electrical connections. The motor ambient temperature range is from 0 to 40 °C making it suitable for a wide range of industrial environments. Its mass is 240 kg which ensures robustness without compromising on performance.
Frequently Asked Questions about 2AD160C-B35OB1-DD03-B2V1:
Q: Why is insulation class F important for this induction motor?
A: The insulation allows operation at higher temperatures, improving motor reliability and protecting windings from thermal stress.
Q: How does the axial blower improve efficiency in the 2AD160C-B35OB1-DD03-B2V1 motor?
A: The blower enhances cooling efficiency, allowing the motor to sustain performance during extended high-load operations.
Q: How does the high-resolution feedback system benefit the 2AD160C-B35OB1-DD03-B2V1?
A: The system improves control precision, ensuring accurate motor response in automation and positioning tasks.
Q: Why are heavy-duty bearings used in the 2AD160C-B35OB1-DD03-B2V1 motor?
A: The bearings extend service life, minimize wear, and support continuous operation in demanding environments.
Q: What advantage does a thermal time constant of 65 minutes provide?
A: The constant allows efficient heat dissipation, preventing overheating during prolonged industrial duty cycles.
