2AD160C-B35OB1-BS03-B2V1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911241964
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The 2AD160C-B35OB1-BS03-B2V1 synchronous servo motor has a frame size of 160 mm, a rated power of 38 kW, a rated torque of 182 Nm, and operates at a rated speed of 2000 rpm. Part of the 2AD 3-Phase Induction Motors series by Bosch Rexroth Indramat, it features IP65 protection and blower cooling.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

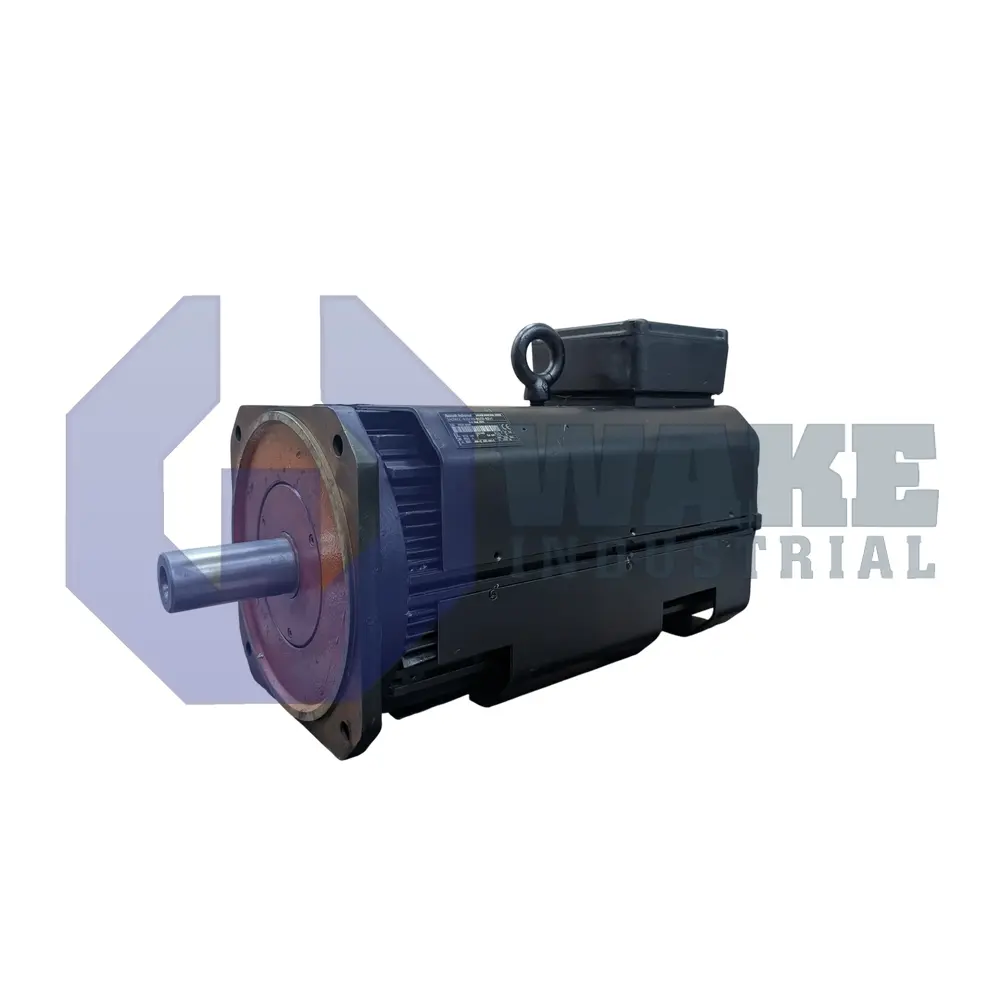

The model 2AD160C-B35OB1-BS03-B2V1 is a robust asynchronous servo motor from Rexroth Indramat. It delivers reliable power with 299 V nominal voltage and 6000 min⁻¹ peak speed. This motor provides dependable operation with a compact yet powerful build.
This 2AD160C-B35OB1-BS03-B2V1 Servo Motor operates with a nominal current of 90 A. The cooling method is axial blower based with air flowing in a B to A direction. The heavy duty bearings are incorporated in this servo motor that ensures long operational life and high radial load capacity. These bearings are lifetime lubricated and include both deep groove ball and cylindrical roller types. The mechanical service life of the bearing system is approximately 20,000 working hours, assuming proper load and speed conditions are maintained. The average noise level of this model measured at a distance of 1 meter with a PWM of 4 kHz is 75 ± 3 dB (A) which is within acceptable industrial sound emission standards. The insulation class is F that indicates that the motor winding insulation can withstand a maximum permissible temperature of 155°C. The rotor of the motor is balanced with a full key. This ensures vibration free and consistent performance in the shaft hub assembly. A full length key is used for rotor balance and the length of the hub keyway does not influence this balance.
The 2AD160C-B35OB1-BS03-B2V1 servo motor does not include a sealing ring which should be considered when planning for environments with exposure to contaminants. The rotor moment of inertia for this motor is 0.229 kgm² that provides sufficient resistance to changes in motion. The motor is designed with a top positioned power connection to facilitate easy integration into electrical systems.
Frequently Asked Questions about 2AD160C-B35OB1-BS03-B2V1:
Q: Is the noise level of the 2AD160C-B35OB1-BS03-B2V1 motor acceptable for use in open manufacturing environments?
A: It operates at an average 75 dB(A) measured at 1 meter with 4 kHz PWM, within industrial norms. The motor remains acoustically stable during full-speed operation.
Q: How does the 2AD160C-B35OB1-BS03-B2V1 motor manage mechanical stability in high torque transmission assemblies?
A: The rotor is fully balanced using a full-length key, not influenced by hub keyway dimensions. This allows for low-vibration, consistent performance in dynamic shaft-driven systems.
Q: What should be considered about the 2AD160C-B35OB1-BS03-B2V1 when operating in environments with particulate exposure?
A: This model does not include a shaft sealing ring, making it sensitive to external contamination. Additional sealing or enclosure is recommended in dusty or humid settings.
Q: Does the 2AD160C-B35OB1-BS03-B2V1 motor maintain bearing life under continuous radial loading conditions?
A: It incorporates heavy-duty deep groove and cylindrical roller bearings that are lifetime lubricated. These support stable rotation and extend operational life under high radial forces.
Q: How does the 2AD160C-B35OB1-BS03-B2V1 handle dynamic torque shifts in industrial automation cycles?
A: Its rotor moment of inertia provides a steady resistance to rapid motion changes. This improves load control and ensures smoother acceleration and deceleration profiles.
