2AD160C-B35OB1-BS01-B2N1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911240894
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

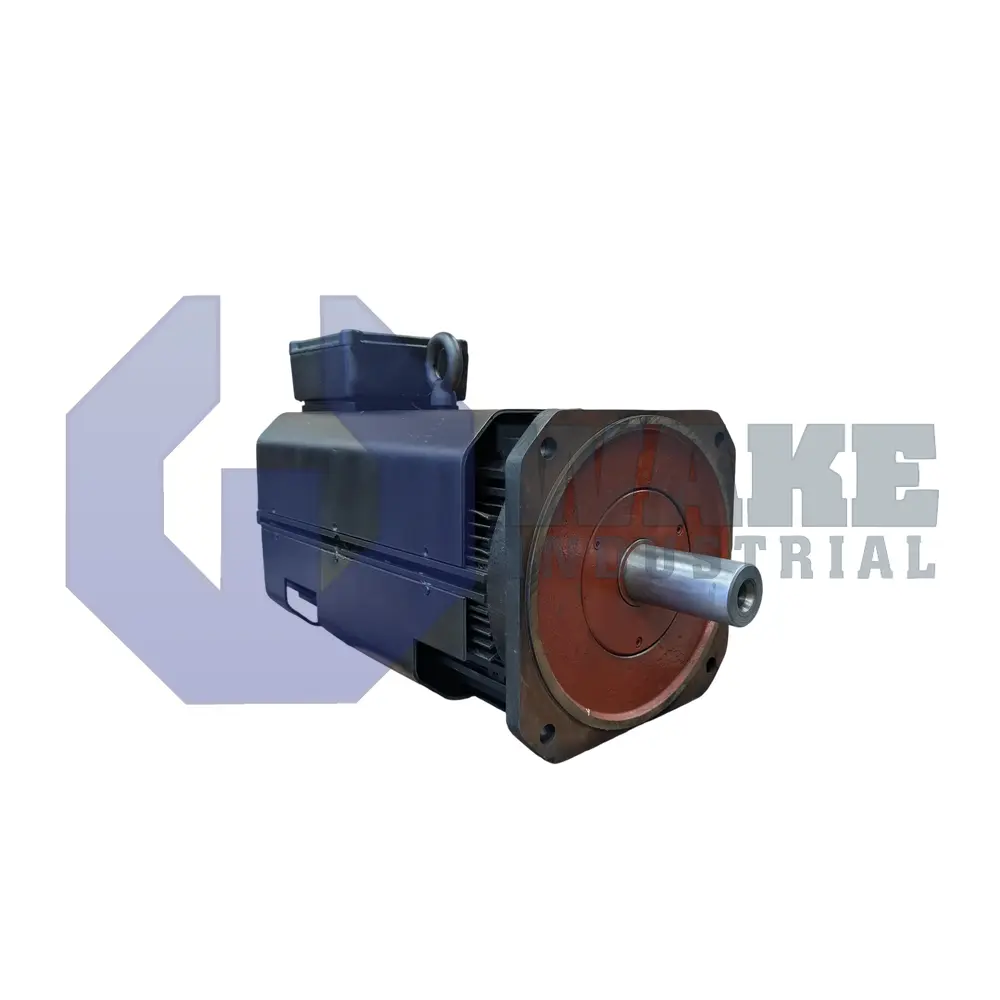

The 2AD160C-B35OB1-BS01-B2N1 servo motor features a frame size of 160 mm, a B35 flange and foot mounting type, a blower cooling system, and IP65 protection. Part of the 2AD 3-Phase Induction Motors series by Bosch Rexroth Indramat, it includes a resolver feedback system and operates at a rated speed of 1500 rpm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat provides the 2AD160C-B35OB1-BS01-B2N1 Induction Motor which is engineered for continuous-duty industrial use. Its construction emphasizes stability during high mechanical loading. The design supports efficiency across a range of applications that requires accurate motion control.
Within the performance range the 2AD160C-B35OB1-BS01-B2N1 induction motor specifies a nominal voltage of 299 Veff. This operating level allows the system to integrate into conventional low-voltage industrial networks. The rotor moment of inertia is 0.229 kgm². It moderates acceleration behavior and stabilizes load transitions during variable-speed cycles. The thermal time constant is 65 minutes this interval reflects the motor’s ability to absorb heat before reaching equilibrium. The minimum connection cross section is 35 mm². That requirement provides adequate current conduction and prevents overheating of supply lines. The ambient temperature range is 0 to 45 °C. Operation within this range maintains insulation integrity and avoids performance degradation in industrial facilities. Active air movement across the housing stabilizes winding temperature and extends service life under continuous loading. The airflow direction is defined as from B to A. This orientation supports straightforward integration with existing duct arrangements and ensures constant heat removal.
The 2AD160C-B35OB1-BS01-B2N1 motor has an axial blower cooling system. The output shaft is supplied with a whole key and works without a shaft sealing ring. Such a configuration provides direct torque transmission while reducing mechanical complexity. The side B shaft end is not equipped. This design condition limits accessory coupling but simplifies installation where only a primary drive end is required. The average noise level at a one-meter distance under a 4 kHz PWM frequency is 75 ±3 dB(A). The acoustic profile enables predictable operation in environments with established noise exposure limit.
Frequently Asked Questions about 2AD160C-B35OB1-BS01-B2N1:
Q: How does the 2AD160C-B35OB1-B2N1 manage heat during extended use?
A: The axial blower cooling system circulates air across the housing, helping maintain safe winding temperatures and prolonging operational life under continuous-duty conditions.
Q: What role does the rotor inertia of 0.229 kgm² play in performance?
A: It moderates acceleration patterns, providing smoother transitions during speed changes and helping the motor handle variable load conditions with greater stability.
Q: How does the 2AD160C-B35OB1-B2N1 contribute to noise-controlled environments?
A: Its 75 ±3 dB(A) noise level ensures compliance with industrial exposure standards, reducing the requirement for supplemental acoustic barriers.
Q: What is the advantage of the motor’s minimum 35 mm² connection cross section?
A: The requirement ensures proper current conduction, safeguarding the supply lines from overheating and improving long-term electrical reliability.
Q: Why does the 2AD160C-B35OB1-B2N1 exclude a shaft sealing ring?
A: The omission simplifies the mechanical structure, reducing complexity while still enabling direct torque transmission for applications not requiring sealing protection.
