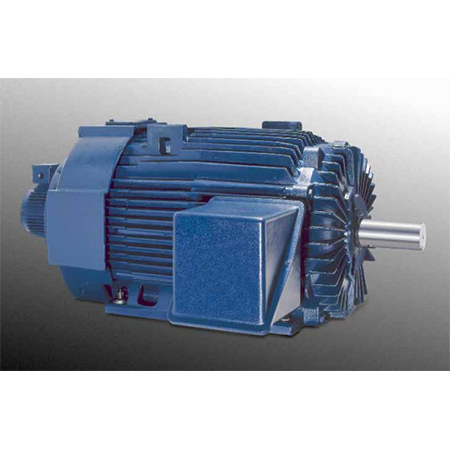

The Bosch Rexroth Indramat 2AD160C-B05OB2-BS03-B2N2 is an AC induction motor from the 2AD 3-Phase Induction Motors series with high-resolution motor feedback and a standard bearing configuration. The motor features flange mounting, uses an axial blower for cooling, and has a shaft balanced with the entire key but without a shaft seal or shaft end on side B.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 2AD160C-B05OB2-BS03-B2N2 induction motor is manufactured by Bosch Rexroth Indramat for the 2AD 3-Phase Induction Motors series. In automated production cells, this three-phase AC unit converts electrical energy into mechanical rotation, giving servo drives a direct means of moving spindles, indexing tables, or conveyor rollers. It is suited to applications that need steady rotary output with controlled speed and position feedback. The motor can be paired with inverter-controlled systems that require repeatable response over long operating cycles. Its design combines forced-air cooling, encoder feedback, and a flange interface for closed-loop machine operation.
Heat is removed by an integrated axial blower, so ambient air is forced along the housing instead of relying on natural convection. A high-resolution motor feedback device is mounted on the rear to transmit rotor position and speed to the inverter, which helps the control loop respond accurately during acceleration and load changes. For mechanical attachment, the stator uses flange mounting, keeping the pilot diameter aligned against the machine surface. Power conductors enter a terminal box fixed on the top of the frame, and the cable outlet is directed toward side B to improve clearance around nearby components. Standard bearings support the shaft, which is balanced with a full key and has no shaft seal, while side B has no shaft extension so the motor can sit close to a gearbox or coupling.
Built on the 160 frame with length code C, the motor keeps a compact axial profile while supporting the torque needs of medium-power axes. Residual imbalance is limited to vibration grade S, which helps reduce running vibration during precision machining and continuous conveyor duty. The unit is supplied without a holding brake, so any static load must be secured by drive torque or a separate mechanical device when power is removed. Its BS winding code is intended for AC induction drive operation and matches the electrical characteristics commonly used with standard industrial inverters.
Frequently Asked Questions about 2AD160C-B05OB2-BS03-B2N2:
Q: What cooling method does the 2AD160C-B05OB2-BS03-B2N2 use?
A: This model features an axial blower for its cooling system, providing forced air cooling during motor operation.
Q: What type of feedback device is included with the 2AD160C-B05OB2-BS03-B2N2?
A: The 2AD160C-B05OB2-BS03-B2N2 is equipped with high-resolution motor feedback for precise control and monitoring.
Q: What is the shaft type for the 2AD160C-B05OB2-BS03-B2N2?
A: This motor has a shaft that is balanced with the entire key but comes without a shaft seal.
Q: Where and how is the power connection configured on the 2AD160C-B05OB2-BS03-B2N2?
A: The power connection on this model is located at the top and directs to Side B, using a terminal box for wiring.
Q: Does the 2AD160C-B05OB2-BS03-B2N2 motor have a holding brake?
A: This motor does not include a holding brake as part of its standard configuration.
