2AD160B-B35OR2-BS03-B2V2
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911254382
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

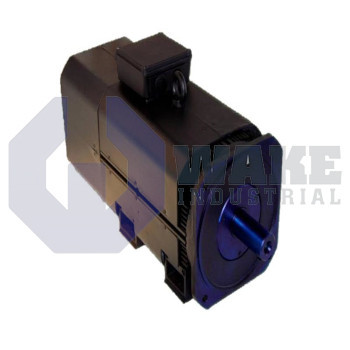

The Bosch Rexroth Indramat 2AD160B-B35OR2-BS03-B2V2 is part of the 2AD 3-Phase Induction Motors Series and features a frame size of 160 mm. This blower-cooled servo motor supports rated voltages between 380-480V and operates at 50/60 Hz. It has an IP54 enclosure and resolver feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The Bosch Rexroth Indramat made 2AD160B-B35OR2-BS03-B2V2 3-Phase Motor runs at a 1500 rpm standard rotation speed with consistent mechanical output over long duty cycles. For applications requiring greater rotational capacity, this motor offers a maximum speed of 6000 min⁻¹ for smooth process adjustments.
With a rated output power of 30 kW, the 2AD160B-B35OR2-BS03-B2V2 motor can support heavy-load use efficiently. The heavy-duty bearings are used in its construction to maintain long-term operation with high radial and axial loads, thus minimizing wear. This motor’s severity level S vibration classification provides minimal structural oscillation, making it more reliable at both normal and maximum speeds. The cable fitting of this motor is optimized through a minimum wiring cross-sectional area requirement of 25 mm² to minimize conductor heating. The insulation rating F of this motor provides better thermal resistance, such that those windings can be insulated at higher temperatures safely without experiencing insulation degradation. Its thermal performance is supplemented by an axial blower cooling system, providing focused airflow to major motor components. The power connection of the 2AD160B-B35OR2-BS03-B2V2 motor is positioned on the above side, which enhances cable routing effectiveness and ease of access during installation and maintenance.
The acoustic output of this 2AD160B-B35OR2-BS03-B2V2 motor is rated at 75 ± 3 dB(A) at a 1-meter distance when tested at a PWM frequency of 4 kHz. The operational current of 72 Aeff ensures this motor’s stable energy usage in heavy-duty cycles. The 305 Veff rated voltage ensures that its electrical specifications are industrial type rated. Also, under long-term operation, this induction motor accurately and stably transmits force with a nominal torque of 191 Nm. A 60-minute heat dissipation time constant supplements this motor to maintain temperature rise in steady loads under control.
Frequently Asked Questions about 2AD160B-B35OR2-BS03-B2V2:
Q: Why are heavy-duty bearings used in this motor?
A: They withstand high radial and axial loads without premature wear. This ensures reliability under constant mechanical stress in production environments.
Q: How does the vibration severity level S benefit the 2AD160B-B35OR2-BS03-B2V2?
A: It minimizes oscillations during operation, reducing wear on mechanical parts. This leads to improved stability and longer service intervals in high-speed applications.
Q: How does the axial blower cooling system improve performance?
A: It provides targeted airflow to the rotor and stator sections. This maintains optimal temperatures during prolonged high-load operation.
Q: What is the advantage of the 305 Veff rated voltage in the 2AD160B-B35OR2-BS03-B2V2?
A: It aligns with industrial power systems, ensuring compatibility without the need for voltage conversion. This improves installation efficiency.
Q: Why is the heat dissipation time constant of 60 minutes important?
A: It allows the motor to sustain high loads before reaching critical temperatures. This is vital for processes with minimal downtime.
