2AD132D-B35OB2-AS11-B2N1
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911240334
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The 2AD132D-B35OB2-AS11-B2N1 induction motor provides a rated power of 15 kW, a rated current of 29.5 A, a torque of 95 Nm, and features an enclosure with IP65 protection. Designed as part of the 2AD 3-Phase Induction Motors series by Bosch Rexroth Indramat, it includes an external fan cooling method.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

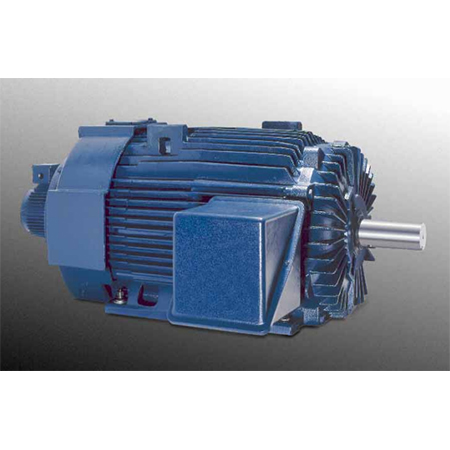

The 2AD132D-B35OB2-AS11-B2N1 Asynchronous Servo Motor delivers reliable speed and torque for demanding automation tasks. This motor offers high nominal power and operates at 1500 rpm. It is suitable for industrial environments with ambient temperatures up to 45 C.
This 2AD132D-B35OB2-AS11-B2N1 servo motor features 140 Nm of rated torque and offers a standard power delivery of 22 kW. It is built to operate continuously at a rated motor speed of 1500 min⁻¹. The motor is designed to operate on a voltage of 290 V, using 54 A of current. It is installed with an insulation rating of “F” that makes it able to withstand increased heat. The electrically engaged holding brake incorporated in this motor has 100 Nm of holding torque. The moment of inertia for the brake is 0.002 kgm². The peak permissible speed for the motor is 7500 min⁻¹, and the brake can handle maximum braking energy of up to 30,000 Ws. The brake includes a release delay time of 140 ms and a clamp delay of 110 ms. This timing ensures reliable operation during start and stop sequences. The holding brakes works at DC 24 V along with ± 10 % tolerance. The brake consumes 1.5 A of current from the system. The overall weight of the brake unit is 4 kg. The brake system provides reliable holding and stopping with consistent delays for controlled actuation.
The Bosch 2AD132D-B35OB2-AS11-B2N1 asynchronous servo motor is intended for applications where fast response and high torque are required. The motor functions within an ambient temperature range of 0 to + 45 C. Wake Industrial offers this 2AD 3-Phase Induction series motor with a one year replacement warranty.
Frequently Asked Questions about 2AD132D-B35OB2-AS11-B2N1:
Q: Does the 2AD132D-B35OB2-AS11-B2N1 motor handle high-speed operations with stability?
A: Yes, the 2AD132D-B35OB2-AS11-B2N1 motor supports peak speeds up to 7500 min⁻¹. It maintains mechanical balance under speed fluctuations with a robust 4 kg brake unit.
Q: Can the Bosch 2AD132D-B35OB2-AS11-B2N1 asynchronous servo motor run continuously in high-temperature zones?
A: Yes, this motor operates efficiently in ambient temperatures up to 45 C. Its F-class insulation ensures thermal durability for continuous industrial usage.
Q: Does the 2AD132D-B35OB2-AS11-B2N1 model offer stable braking during fast stop cycles?
A: Yes, the integrated brake delivers a holding torque of 100 Nm with 140 ms release delay and 110 ms clamp delay. This ensures smooth response during rapid motor stops.
Q: Is the 2AD132D-B35OB2-AS11-B2N1 servo motor reliable for high-demand automation tasks?
A: Yes, it delivers 22 kW of nominal power and 140 Nm torque. It operates consistently at 1500 min⁻¹ for demanding continuous-duty automation needs.
Q: How efficiently does the 2AD132D-B35OB2-AS11-B2N1 model use electrical input?
A: The motor uses 290 V nominal voltage and draws 54 A current. It optimizes power use in precision applications while keeping energy flow steady.
