Product Description:

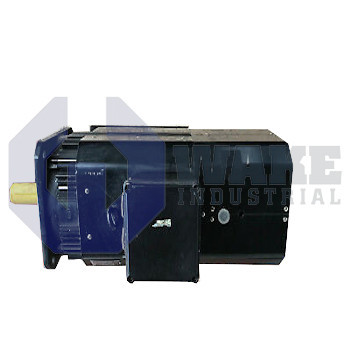

The 2AD132C-B35OB1-CS03-B2N1 is an AC induction motor produced by Bosch Rexroth Indramat and assigned to the 2AD 3-Phase Induction Motors series. In automated machinery, this motor converts electrical power into constant-speed mechanical rotation for pumps, printing cylinders, and material-handling axes that do not require embedded position control. Its size designation and length code C give it a known mechanical envelope for machine layouts where consistent mounting dimensions are required.

The unit is cooled by an axial blower that forces air through the housing to remove heat generated in the stator windings. Frame size 132 establishes the shaft center height and flange diameter used when aligning the motor to gearboxes or direct-drive load couplings. Mechanical fixation is possible through flange and foot mounting, allowing either rigid base installation or face-mounted integration on vertical plates. The power leads exit at the top of the stator and are routed toward side B, which keeps cable glands clear of drip zones and reduces bend radius requirements inside compact cabinets. Standard bearings support the rotor, and the shaft is supplied without a shaft seal while being dynamically balanced with the complete key inserted to minimize residual vibration during continuous service.

Rotor position is monitored by high-resolution motor feedback, permitting drive controllers to detect very small speed deviations for slip compensation and smooth acceleration ramps. The motor is supplied without a holding brake, so any static load retention must be provided by the driven machine or an external mechanical lock. Compliance with Vibration grade R limits the radial and axial displacement transmitted to adjacent precision components. Winding identification CS matches the stator impedance and thermal characteristics expected by compatible drives. Side B remains closed because no shaft end is present, which helps protect the internal airflow path from debris entry.
