Product Description:

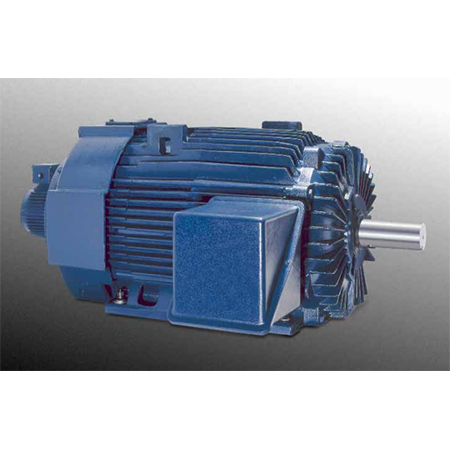

The 2AD132B-B35OB2-AD01-A2N1 is an AC induction motor manufactured by Bosch Rexroth Indramat within the 2AD 3-Phase Induction Motors series. In automated plants, this motor converts three-phase electrical power into rotational motion for equipment such as extruders, material-handling rollers, and large pumps. Its modular design allows the unit to be paired with compatible drive controllers and installed either on a frame or directly on process machinery. It is intended for applications where reliable continuous rotation is more important than frequent stopping and holding.

This model is cooled by an integrated axial blower, so airflow moves parallel to the shaft to keep winding temperatures within allowable limits during continuous duty. It uses motor size code 132 and motor length code B, which indicate the stator diameter and stack height and set the motor's torque capability and mounting footprint. The housing supports flange and foot mounting, allowing either face mounting to a gearbox or base mounting on machine beds. The unit is supplied without a holding brake, so any required static load retention must be handled by the drive or an external locking mechanism. Standard bearings support radial and axial loads generated during operation and help maintain alignment under vibration.

Electrical service conductors enter through a power entry on side B tube, and the terminal box is in a top power connection position for easier access when the motor is installed low in a cabinet. Output torque is delivered through a smooth shaft without a seal, which is suited to clean environments; the opposite end has no shaft extension, simplifying installation against adjacent bearings or housings. The motor can connect directly to common couplings without added sealing hardware at the shaft end. Dynamic behavior is classified as vibration grade R, which indicates the balance quality to observe when attaching couplings or pulleys.
