Product Description:

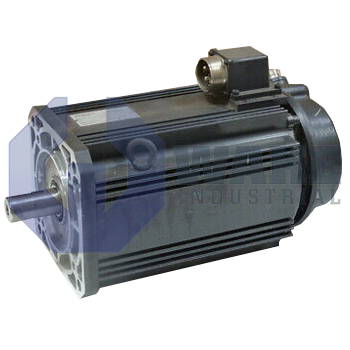

The 2AD100B-B05OB1-AS01-B2N1 is an AC induction motor produced by Bosch Rexroth Indramat for the 2AD 3-Phase Induction Motors series. In automated production cells, the unit converts three-phase electrical power into controlled shaft rotation for spindles, pumps, and material-handling axes when used with a compatible inverter. The motor is intended for machinery that requires continuous duty and strong starting torque during repeated operating cycles. When paired with the inverter, it can deliver controllable speed and torque across a wide operating range. Its 100-frame platform and B motor length provide a moderate installation envelope for general industrial equipment.

Cooling is provided by an external axial blower rated at 230 V, which forces air through the housing to remove heat from the stator windings during sustained operation. The motor uses flange mounting, allowing direct attachment to machine plates or gearbox faces. Power leads exit from the top and are routed to side B, which helps keep high-current cables away from moving components. A sealed industrial connector completes the power interface and keeps the electrical connection compact. The motor is supplied without a holding brake, so stopping or load holding must be handled by the drive or by external mechanical hardware. Standard-class bearings support the rotor and help maintain steady running under continuous duty.

Winding code AS identifies the electrical layout used in this motor. The output shaft is supplied without a shaft seal and is balanced with the full key installed, while vibration grade R supports smooth operation where stable running is important. Full-key balancing helps reduce vibration from the keyed shaft during rotation. The face opposite the drive end has no secondary shaft end, which shortens the overall package and leaves that side closed. This arrangement suits applications that need only one mechanical output and prefer a compact motor body.
