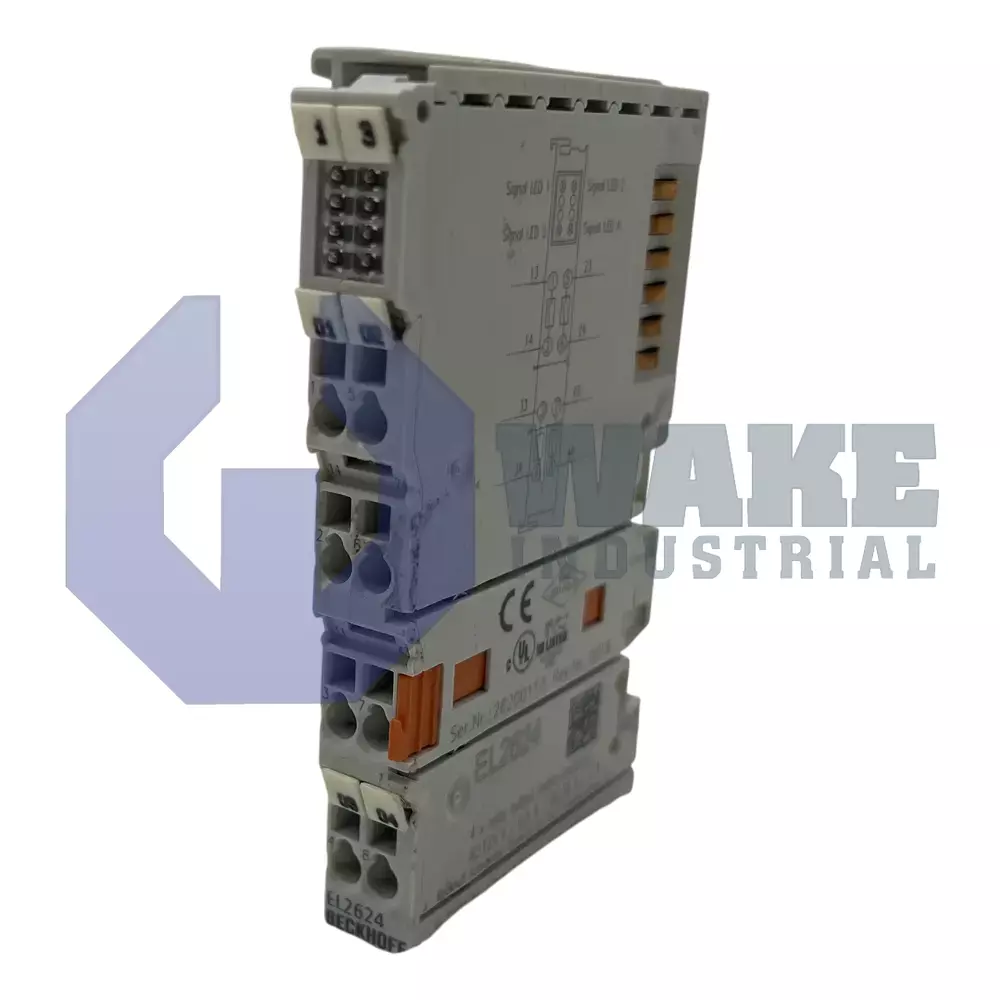

EL2624 Beckhoff
Wake Industrial LLC is not an authorized distributor of this product.
MPN: EL2624-0000
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Beckhoff EL2624 is a relay output terminal in the EL EtherCAT Terminals series. It features four make contact outputs with ohmic switching capacities of 0.5 A AC and 2 A DC per channel, supporting nominal voltages up to 125 V AC and 30 V DC. The unit is designed for DIN rail mounting and offers a mechanical life of at least 100 million cycles with IP20 protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The EL2624 is a relay-output I/O terminal produced by Beckhoff within the EL EtherCAT Terminals series. It bridges an EtherCAT fieldbus segment to four independent electromechanical contacts so that controllers can switch external loads directly. By integrating relays into the bus node, the module eliminates separate interposing hardware and provides galvanic isolation between the low-voltage logic on the E-Bus and field circuits that demand higher voltage switching in industrial automation. This arrangement is useful for switching lamps, contactor coils, solenoids, and other discrete loads that require direct on and off control from the automation system.
Each channel is rated for a nominal switching level of 125 V AC/30 V DC and can carry an ohmic load current of 0.5 A AC/2 A DC per channel. The output bank is organized as 4 × Make Contacts, giving straightforward normally open functionality suited to resistive loads. For supply distribution, the terminal passes the L and N power conductors internally, and these power contacts are rated for 10 A so downstream terminals can share the same feed without extra wiring. The bus interface maps the four relay states into the process image with a width of 4 output bits, while the internal electronics draw their operating power exclusively from the E-Bus. Environmental ingress protection is limited to IP20, which aligns with use inside control enclosures. Because the relay outputs are electrically separate from the bus electronics, the terminal can connect control logic to field-side circuits without requiring additional isolation components.
Service life aligns with industrial duty cycles: the specified electrical endurance is 2 × 105 cycles (1 A/30 V DC), and the relay mechanics are rated for 1 × 108 cycles irrespective of load. Very small sensing currents down to 10 µA at 10 mV DC can still be switched, allowing the same channel to handle diagnostic or signaling tasks when required. A housing molded from polycarbonate provides insulation and a compact 12 mm profile, and installation is by snap-fit onto a 35 mm DIN rail (EN 60715) to integrate with standard terminal rows. The slim housing also helps preserve cabinet space when many I/O points are grouped in a single terminal strip.
Frequently Asked Questions about EL2624:
Q: What connection technology does the Beckhoff EL2624 terminal use?
A: The EL2624 uses relay output connection technology for switching loads.
Q: What is the nominal voltage rating of the EL2624 terminal?
A: This terminal supports a nominal voltage of 125 V AC or 30 V DC for output switching.
Q: What is the maximum ohmic switching current per channel on the EL2624?
A: Each output channel on the EL2624 can switch up to 0.5 A AC or 2 A DC for ohmic loads.
Q: How is the Beckhoff EL2624 terminal mounted within a control cabinet?
A: The EL2624 is designed to be mounted on a 35 mm DIN rail according to EN 60715 standards.
Q: How many relay outputs does the EL2624 terminal provide?
A: This terminal offers 4 make contact outputs, each operable via the E-Bus power supply.
