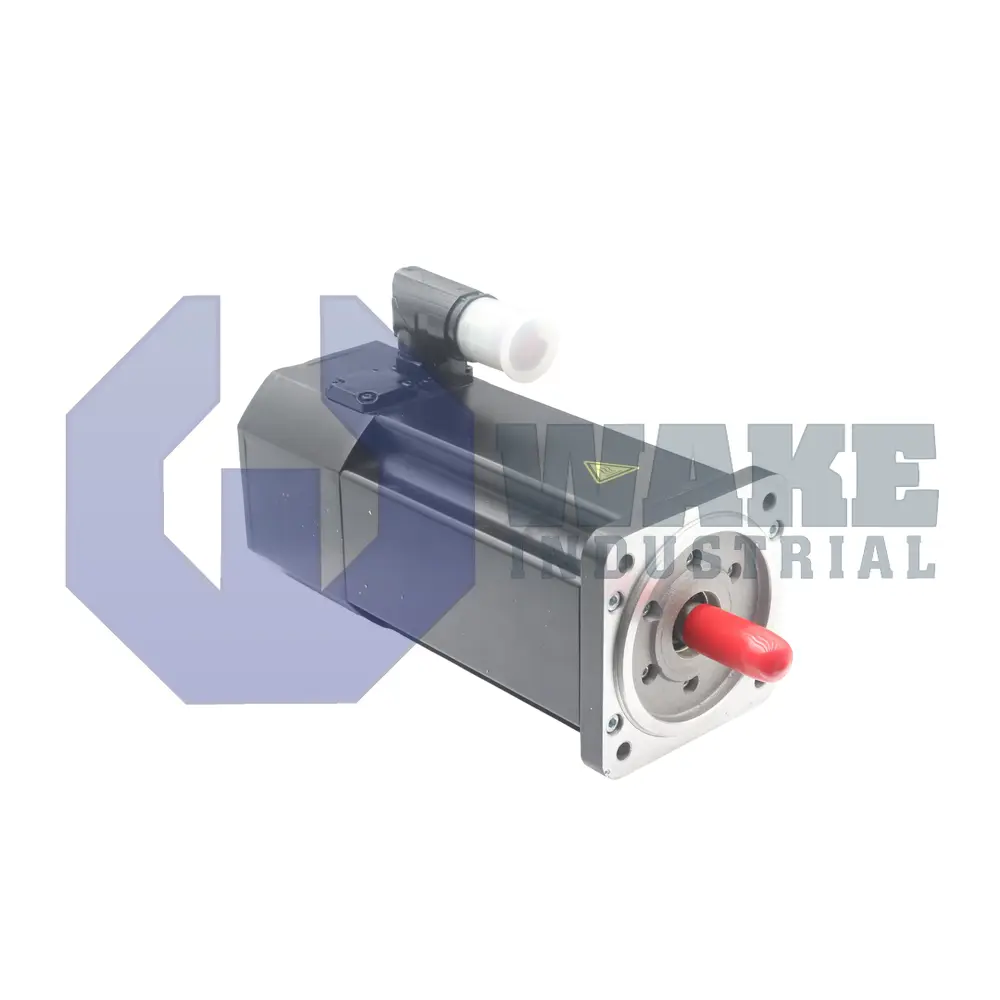

The B & R Automation 8LSA35.DB060S000-3 is a three-phase synchronous motor that belongs to the 8LS Synchronous Motors series. It features a self-cooling design with free circulation and uses an inductive EnDat encoder with 19-bit single-turn and 12-bit multi-turn resolution. The motor has a 91.3 mm flange, a smooth shaft end, and supports up to 4096 multi-turn revolutions.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 8LSA35.DB060S000-3 is a three-phase synchronous motor manufactured by B&R Automation for the 8LS Synchronous Motors series. It serves as a servo axis in assembly cells, material-handling stations, and packaging machines where tightly regulated rotary motion is required. The unit has the 8LSA configuration code, indicating the standard version without reinforced bearings, and operates in a closed-loop automation system when powered by a compatible inverter and connected to a machine controller. Its synchronous design supports accurate torque, speed, and position control during repetitive operating cycles.
The motor reaches a rated speed of 6000 rpm, enabling high-cycle positioning tasks. Position feedback comes from an inductive EnDat sensor using protocol version 2.2. This device supplies absolute position data with 19/12 bits of single-turn and multi-turn resolution and tracks up to 4096 revolutions, so the drive retains the shaft position after power is restored. Because the measuring electronics are built into the motor head, no battery is required to maintain position data. The inductive measuring principle tolerates wider air gaps than optical systems, increasing resistance to dust and vibration. Length code 5 indicates the magnetic stack used for continuous torque production. The motor is supplied without a holding brake, so an external locking device must support vertical loads when drive torque is unavailable.
Installation uses a single-cable solution that combines the power and encoder lines in one hybrid plug, reducing the number of separate cable connections. Heat is removed through a self-cooling surface that relies on free air circulation and does not require an auxiliary fan. The front mounting flange has a diameter of 91.3 mm, providing a compact mechanical interface for installation. A smooth shaft supports connection to gears, pulleys, or other driven components through a suitable clamping or press-fit coupling. A keyed circular connector provides the electrical interface for the combined cable. The motor does not have an oil seal and is intended for operation in dry areas where the shaft interface is not exposed to oil or similar fluids. Product revision 3 identifies the electrical layout used for this version of the motor.
