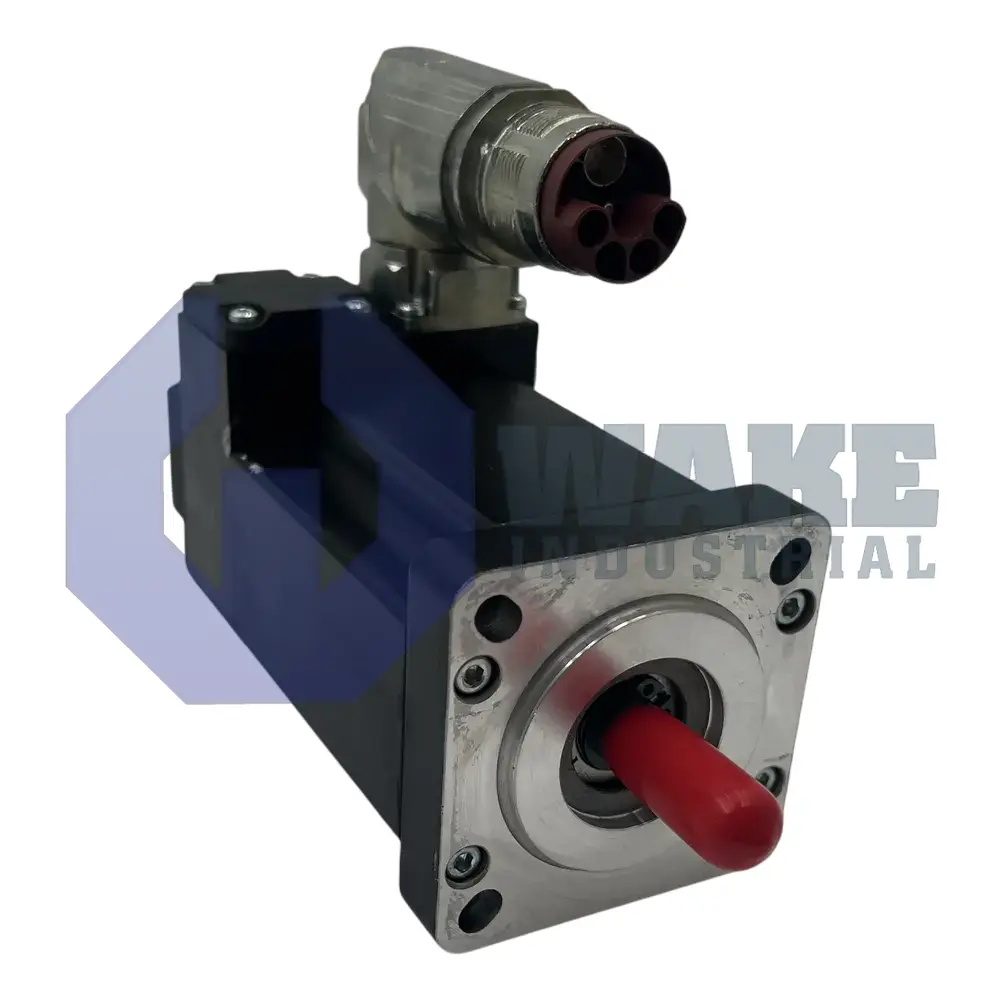

The B & R Automation 8LSA25.D8060S000-3 is a three-phase synchronous motor from the 8LS Synchronous Motors series. It features a flange dimension of 58 mm, a rated speed of 6000 rpm, and uses self-cooling by free circulation. This model has an inductive EnDat encoder, a mounting flange, and a single-cable hybrid connection.
Internal Product Review
The 8LSA25.D8060S000-3 is a B & R Automation three-phase synchronous motor that offers self-cooling free circulation and a practical single-cable hybrid connection. Inductive EnDat 2.2 feedback provides clean position data, and the smooth shaft simplifies mechanical integration. A 6000 rpm rated speed stands out as a key advantage for fast, precise motion applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 8LSA25.D8060S000-3 is a three-phase synchronous motor produced by B&R Automation for the 8LS Synchronous Motors series. This compact unit serves as a drive element for positioning and speed-controlled axes in automated machinery, delivering regulated mechanical power to conveyors, pick-and-place tables, and indexing stations. Its flange-mounted housing and integrated encoder support closed-loop servo applications in packaging and material-handling lines. The motor converts balanced three-phase current into controlled rotary motion, allowing a compatible drive to regulate torque, velocity, and position as operating demands change.
The motor reaches a rated speed of 6000 rpm, and heat is dissipated through a self-cooling system that relies on free air circulation around the stator. Power, feedback, and safety signals share a single-cable hybrid connection that terminates in a shielded industrial connector, simplifying machine wiring and reducing the number of separate cable routes. Rotor position is measured with an inductive EnDat feedback system that uses the EnDat 2.2 protocol to transmit position data to the drive. The mounting interface uses a 58 mm square flange, allowing the motor to connect directly to compact gearboxes or compatible machine frames. Length code 5 indicates the magnetic stack length used in this model. The encoder measures one mechanical revolution, and the motor does not include an integrated oil seal, so external protection may be required in environments exposed to lubricants.
The motor uses a standard configuration with standard bearings and is supplied without a holding brake. Static loads must therefore be secured by drive-applied torque or an external clamping device when the axis is stopped. A smooth shaft supports friction-fit pulleys, clamping couplings, or shrink-fit hubs without requiring a keyed connection. The lack of an oil seal helps reduce rotational drag during high-speed operation. The encoder provides 19/0 bits of resolution, with 19 bits available for position measurement and no multiturn data storage. Product Revision 3 electronics process the feedback data for accurate commutation and closed-loop motion control. The housing contour supports direct installation where compact motor dimensions are required, while the three-phase winding maintains balanced current draw across the motor phases.
