Product Description:

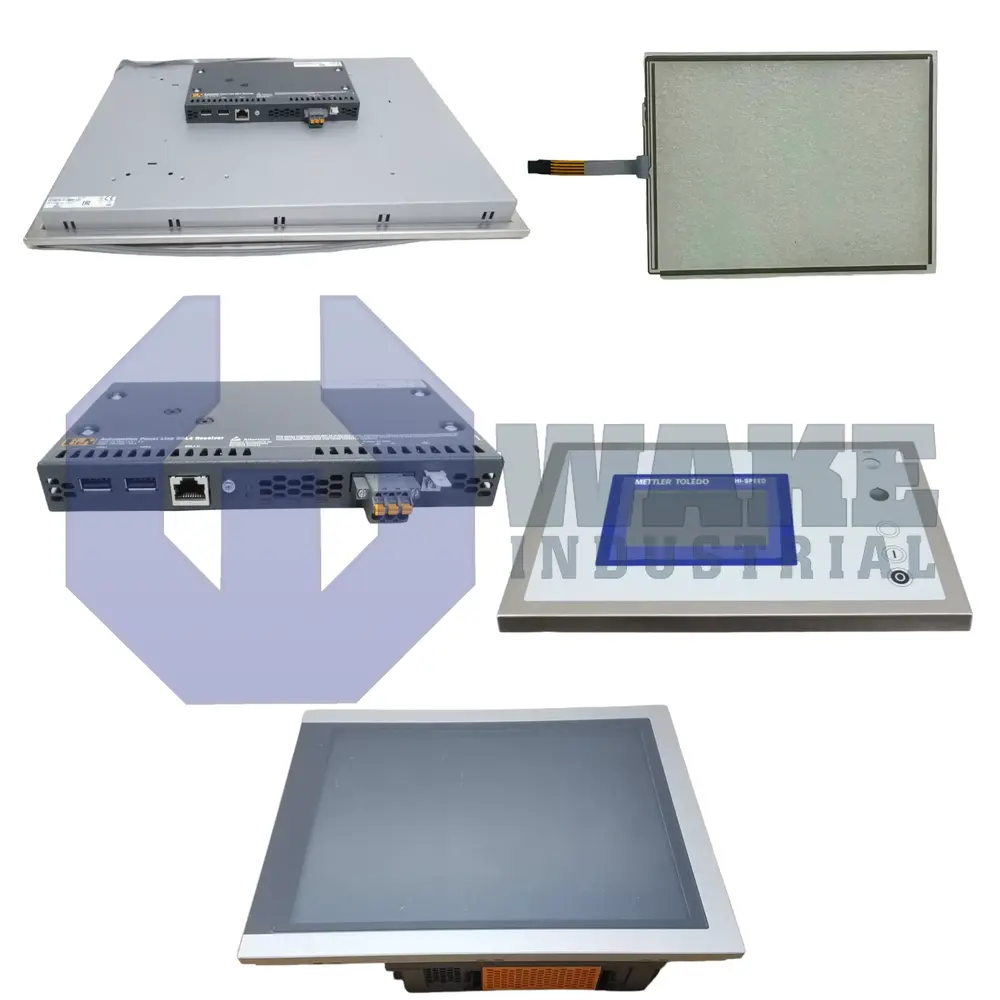

The 5AP1120.101E-000 is a human-machine interface panel produced by B & R Automation within the 5AP Single Touch Automation Panels series. The unit combines a resistive single-touch screen with an integrated controller front, giving machine operators direct access to visualization and control layers in industrial automation cells. By mounting this panel on a cabinet door or machine frame, users can issue commands, display process data, and acknowledge alarms without adding external keyboards or pointing devices.

Mechanical sealing on the front side is rated at IP65, which means the panel is dust-tight and resistant to low-pressure water jets, so routine cleaning does not compromise the display. The display has a native resolution of 1280 x 800 pixels, which matches a 16:9 aspect ratio, and it can render up to 16.7 million colors to separate status elements on screen. A diagonal of 10.1" provides enough surface for multi-page layouts while remaining compact for crowded panels, and illumination is supplied by a LED backlight that reduces power consumption and thermal load inside enclosures. The TFT technology and analog resistive touch layer allow accurate single-finger activation even through thin gloves.

The rear housing has an IP20 rating, so it should be installed inside a protected cabinet when the process environment is dusty or wet. The backlight maintains half of its initial brightness after 50,000 h, which supports long operating periods before noticeable dimming occurs. For mechanical integration, the aluminum-coated frame measures 279 mm in width and 191 mm in height, and its mass of 1900 g limits strain on light swing-arm mounts. A planar footprint eases cutout preparation, and the analog resistive surface resists scratches from stylus tips used during service tasks.
