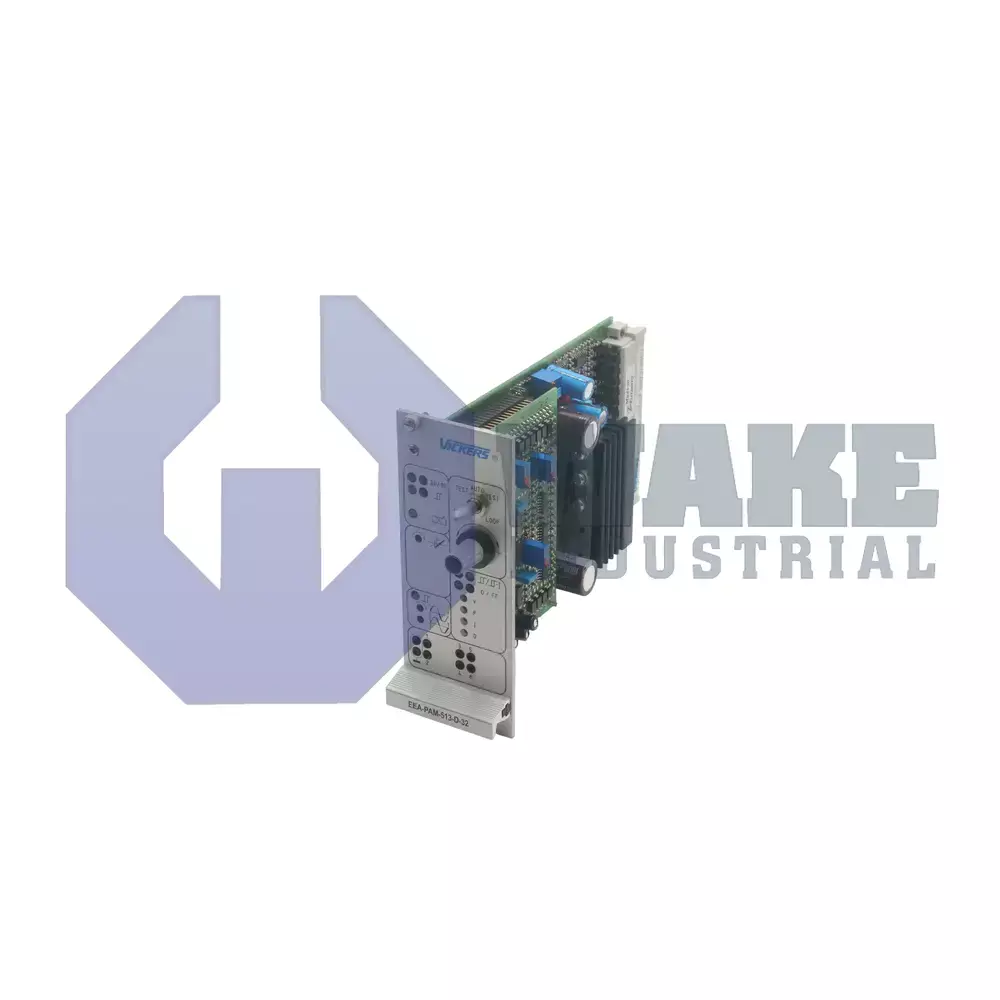

The EEA-PAM-513-D-32 is a power amplifier card produced by Vickers as part of the EEA-PAM Power Amplifiers series. The card measures 175.24 mm in depth, 128.4 mm in height, and 100 mm in width. It offers a ±10 V command input voltage range and a ±20 mA current command input range.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The EEA-PAM-513-D-32 is a plug-in power amplifier card manufactured by Vickers for the EEA-PAM Power Amplifiers series. It installs in a Eurocard rack and conditions command signals so proportional hydraulic valves respond with precise spool positioning, a key requirement for repeatable pressure and flow regulation in industrial automation.
The card accepts a differential command of ±10 V or a current reference of ±20 mA, each routed through separate conditioning networks. An alarm circuit presents a load of 50 Ω so external fault indicators can be driven without adding excessive current draw. Physical depth is 175.24 mm, leaving clearances for rear connectors, while the voltage input stage exhibits 47 kΩ impedance to minimize loading on upstream controllers. The current command path sees 100 Ω of input resistance, matching common PLC analog outputs. A ramp generator node is available and is buffered by 10 kΩ impedance so that user-supplied capacitors can shape acceleration profiles without destabilizing the loop. Additional terminations include a 6 kΩ feed-forward input, a monitor test point at 10 kΩ, and matching 10 kΩ resistance on the ramp-active output.
The control section sources +15 V for the valve coil driver, and sensor feedback lines encounter 1 MΩ impedance, preventing measurable loading on position transducers. A stabilized reference of +10 V × 5 mA is provided for external potentiometers, complemented by a –10 V mirror output of the same drive capability. Enclosure dimensions are completed by a card height of 128.4 mm and a width of 100 mm, allowing installation beside adjacent modules without interference. For diagnostic pacing, both the ramp-generator input and the ramp-active return share 10 kΩ paths, while the feed-forward network’s 6 kΩ resistor lets operators superimpose open-loop bias during tuning.
Frequently Asked Questions about EEA-PAM-513-D-32:
Q: What command input voltage range does the EEA-PAM-513-D-32 power amplifier support?
A: The EEA-PAM-513-D-32 accepts a command input voltage range of ±10 V, allowing for precise analog signal control.
Q: What is the control output voltage of the EEA-PAM-513-D-32 amplifier card?
A: This model has a control output voltage of +15 V, suitable for driving associated control devices.
Q: What current command input range does the EEA-PAM-513-D-32 accept?
A: The current command input range for this unit is ±20 mA, facilitating a standard current input interface.
Q: What is the card width of the EEA-PAM-513-D-32 amplifier?
A: The EEA-PAM-513-D-32 features a card width of 100 mm, enabling compatibility with standard equipment racks.
Q: What reference output is available on the EEA-PAM-513-D-32 power amplifier?
A: This amplifier provides a reference output of +10 V at 5 mA, which is often used for supplying reference signals to sensors or external devices.
