EEA-PAM-523-D-32
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days
The EEA-PAM-523-D-32 amplifier series from Vickers offers precision hydraulic control with ±10V reference voltage and 5 mA delivery capacity. It supports ±10V sensor input impedance of 1 MΩ and integrates reverse polarity protection
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

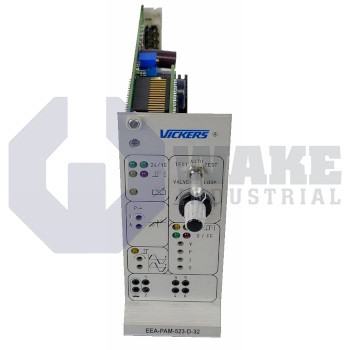

The EEA-PAM-523-D-32 is a power amplifier with integrated PID modules that is designed for precise control in hydraulic systems. This model is manufactured by Vickers. Vickers has a rich history in producing a wide range of industrial automation and defense products including power amplifiers, hydraulic components, and control systems.
This EEA-PAM-5**-D-32 power amplifiers series unit operates with a nominal 24 V DC power supply and includes reverse polarity protection. It provides control output supplies of + 15 V that are specifically for Linear Variable Differential Transformers (LVDTs). The reference voltages of this model are set at + 10 V and – 10 V each capable of delivering up to 5 mA. This module accepts command inputs in both voltage and current forms. The voltage command inputs have a range of ± 10 V with an input impedance of 47 kΩ while the current command inputs support a range of ± 20 mA with an input impedance of 100 Ω. A feed forward input is available that features an input impedance of 6 kΩ and a voltage range of ± 10 V.
This amplifier includes an input to the ramp generator which has an input impedance of 10 kΩ and accepts voltages ranging from ± 10 V. Sensor inputs of this unit are designed to accommodate both voltage and current signals. For voltage inputs, the impedance is 1 MΩ and supports ranges of 0 to 10 V or ± 10V. Current inputs are also supported with an impedance of 100 Ω and ranges of 4 - 20 mA or 0 - 20 mA. This power amplifier is equipped to monitor sensor failures particularly for sensors with current outputs. The amplifier's design ensures all outputs are short circuit protected.
Frequently Asked Questions about EEA-PAM-523-D-32:
Q: Does the EEA-PAM-523-D-32 include protection for sensitive circuits?
A: Yes, this amplifier offers robust short-circuit protection for all outputs. It also features reverse polarity protection to safeguard the 24V DC power input, ensuring system reliability and fault prevention.
Q: What reference voltages are available in the EEA-PAM-523-D-32?
A: The reference voltages in this model are set at +10 V and –10 V. Each can deliver up to 5 mA, providing stable control output for precise hydraulic actuation and LVDT operation.
Q: How does the EEA-PAM-523-D-32 handle multiple input types in hydraulic systems?
A: The EEA-PAM-523-D-32 supports both voltage and current command inputs for flexible control. Voltage inputs range from ±10 V with 47 kΩ impedance. Current inputs support ±20 mA with 100 Ω impedance.
Q: Is there a feed-forward input in the EEA-PAM-523-D-32 for additional control?
A: Yes, the amplifier includes a feed-forward input with a 6 kΩ impedance. It supports a voltage range of ±10 V, enhancing response adjustments for precise performance in hydraulic control applications.
Q: How does the EEA-PAM-523-D-32 handle sensor inputs?
A: This unit accommodates both voltage and current sensor inputs. Voltage sensor inputs have a 1 MΩ impedance and support 0 to 10 V or ±10 V ranges. Current sensor inputs support 4-20 mA or 0-20 mA ranges with 100 Ω impedance.
