EEA-PAM-525-B-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options

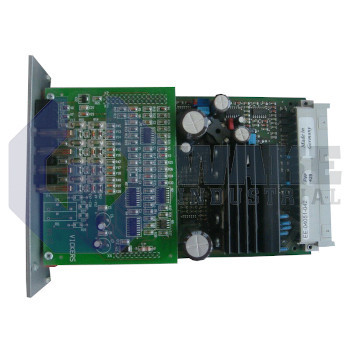

EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-525-B-32 Card is For Proportional Valve KDG4V-5, H coil and has a Power Supply Nominal Voltage of 24V DC x 50W.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

EEA-PAM-525-B-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-525-B-32 Card is For Proportional Valve KDG4V-5, H coil and has a Power Supply Nominal Voltage of 24V DC x 50W.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a EEA-PAM-525-B-32 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Reliability, safety, and durability remain important aspects that machine users, machine designers, and innovators consider when seeking new motion control products. If you choose Vickers, all these aspects will be taken care of and you will also enjoy machine products that are scalable, innovative and ultra-efficient. These automation products are also subjected to rigorous testing to ensure that no possibility of failure upon leaving the facility. So, you can shop with confidence whether looking for servo motors, drive controllers, gearing, electric control, mains filters, spindle drives or even quality amplifiers. With Vickers, you will enjoy matchless performance throughout.

The EEA-PAM-525-B-32 is an amplifier by Vickers and below is the technical information. This unit’s control output supplies at pin z22 is +15 V for LVDTs only. The output voltage for control at pin z2 is +10V (-/+1%) x 5 mA while at pin b2 is –10V (-/+1%) x 5 mA. This output voltage for control will be ripple less than 20 mV pk to pk. All the outputs in this amplifier are short circuit protected for safety and continued performance.

Now to command signal input, there are direct voltage pins that is, b8, z8, b6, and b10 while inverting voltage pin is z10. The voltage range is +/-10V and the input impedance of voltage is 47 kΩ. The current pin is z6 and the current range stands at 20 mA. The current input impedance is 100 Ohms. You should be careful that pin d2 does not lose signal because if it does, it will cause polarity and there is a possibility of erratic motion thereafter.

The command voltage source d20 of the EEA-PAM-525-B-32 is +/- 10V x 10 mA. The input impedance at the voltage-controlled ramp generator is 10 kOhms.

  • EEA PAM 525 B 32
  • EEAPAM525B32

EEA-PAM-525-B-32 Technical Specifications

Series: EEA-PAM-5**-B-32
For Proportional Valve: KDG4V-5, H coil
Power Supply Nominal Voltage: 24V DC x 50W
Control Supply Output: 15V
Ramp Acceleration Time Range: With pot. set at zero, 0 to +10V equates to a ramp time range of 50ms to 5s
Ramp Deceleration Time Range: With pot. set at max., 0 to -10V equates to a ramp time of 5s to 50 ms
