EEA-PAM-523-B-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options

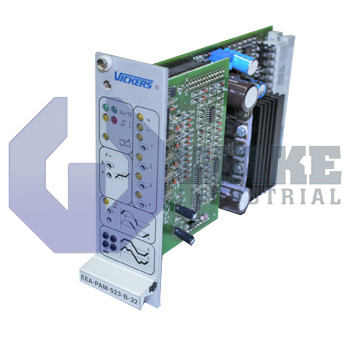

EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-523-B-32 Card is For Proportional Valve KD/TG4V-3, KDG5V-5/7/8/10, H coil and has a Power Supply Nominal Voltage of 24V DC x 50W.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

EEA-PAM-523-B-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-523-B-32 Card is For Proportional Valve KD/TG4V-3, KDG5V-5/7/8/10, H coil and has a Power Supply Nominal Voltage of 24V DC x 50W.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a EEA-PAM-523-B-32 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Vickers thrives in offering quality motion control products to its clients located in various parts of the world. As among the few firms that excel in understanding the machine needs, it continues to design and manufacture products of utter ruggedness, extreme and also long-lasting. Equipped with modern technology and experienced human resources, Vickers assures its clients of cost-effectiveness, ultra-efficiency, and innovation. Whether you are looking for drive controllers, gearing, servo motors, CNC, electric controllers or even reliable amplifiers, Vickers is the place to acquire all these and others. Experience unmatched machine performance and reliability in all your operations, consider Vickers.

The EEA-PAM-523-B-32 amplifier from Vickers is carefully designed for matchless performance when you maintain the parameter values. The technical information is as follows – the ramp active indicator is b12 and to drive ramping up, the output is more than 10 V and drive ramping down is less than -10V. When the drive is not ramping, the voltage is 0V, +/-2V ripple. The output resistance stands at 10 kΩ.

The command signal input of the EEA-PAM-523-B-32 amplifier has direct voltage pins such as b6, b8, z8, and b10 and the inverting voltage pin is the z10. The command signal input voltage range stands at +/-10V and the input voltage (impedance) is estimated to be 47 kΩ. At z6, the current stands at 20 mA while the input current impedance is estimated to be 100 Ohms.

This unit weighs about 0.40 kg and its ideal ambient operating temperature range stands at 0 to 500C and the appropriate storage and transport temperature is estimated to be -25 to +85 0C.

Something worth noting is that loss of signal at pin d2 will lead to polarity and erratic motion is possible.

  • EEA PAM 523 B 32
  • EEAPAM523B32

EEA-PAM-523-B-32 Technical Specifications

Series: EEA-PAM-5**-B-32
For Proportional Valve: KD/TG4V-3, KDG5V-5/7/8/10, H coil
Power Supply Nominal Voltage: 24V DC x 50W
Control Supply Output: 15V
Ramp Acceleration Time Range: With pot. set at zero, 0 to +10V equates to a ramp time range of 50ms to 5s
Ramp Deceleration Time Range: With pot. set at max., 0 to -10V equates to a ramp time of 5s to 50 ms
