EEA-PAM-581-A-30
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

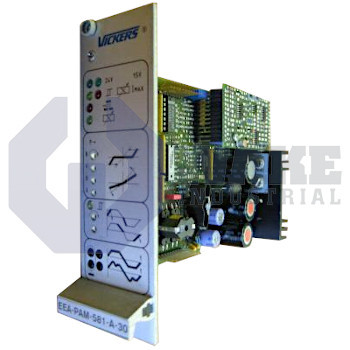

EEA-PAM-581-A-30 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. This EEA-PAM-581-A-30 Card is For Proportional Valve KHDG5V-5/7/8 and has a Power (Input) Supply of 24V DC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Vickers stands out as a reliable and high-end manufacturer of motion control accessories of quality construction that are exceptionally rugged, long-lasting, scalable, innovative, cost-effective and highly efficient. With the integrated systems, technological advancement and qualified and experienced technicians and engineers, this company continues to penetrate new market frontiers and thrive in solving automation problems sustainably. Vickers is also committed to hours of research and development as well as continuous and rigorous testing of its components to ensure that performance is unparalleled. You can find quality products such as drive controllers, servo drives, encoders, supply modules, servo motors, step motors, power cables as well as CNC and gearing from Vickers in an affordable way.
Vickers’ EEA-PAM-581-A-30 unit is designed to give accurate acceleration and deceleration values when certain things are observed. For example, using large-sized spools and valves reduces performance and thus you should select the smallest valves as well as corresponding spools. The power supply should be maintained at 24 V and you should maintain the parameter values of the command and output signals. The major command signals for this unit are non-inverting current, non-inverting voltages, differential voltages, and inverting voltages.
The next important thing is ensuring the installation process adheres to the photo-documented instructions. For instance, you should not exceed the installation height and keep the temperature ranges as recommended. In mounting the EEA-PAM-581-A-30 amplifier, maintain the top-down approach. The top side displays indicating lights which communicate the state of your unit. The LEDs will indicate whether the 24V power is on, if improper wiring has resulted in overload, whether the unit’s command control is working and if there is current to a solenoid.
Frequently Asked Questions about EEA-PAM-581-A-30:
Q: What is the recommended power supply voltage for the EEA-PAM-581-A-30?
A: The EEA-PAM-581-A-30 should be powered with a 24 V supply. Maintaining this voltage ensures the stability and proper functioning of the unit.
Q: How can the performance of the EEA-PAM-581-A-30 be optimized regarding spools and valves?
A: For optimal performance, select the smallest valves and corresponding spools as using large-sized ones reduces performance. Proper size selection guarantees better acceleration and deceleration values.
Q: What are the major command signals for this unit?
A: The primary command signals are non-inverting current, non-inverting voltages, differential voltages, and inverting voltages. These signals are crucial for the effective communication and operation of the unit.
Q: How should the EEA-PAM-581-A-30 be installed in terms of height and temperature?
A: Ensure you don't exceed the recommended installation height and maintain the prescribed temperature ranges. Following these parameters ensures the longevity and proper functionality of the unit.
Q: What do the LEDs on the top side of the EEA-PAM-581-A-30 indicate?
A: The LEDs display the status of the 24V power, wiring integrity, the unit's command control functionality, and the presence of current to a solenoid. These indicators provide quick diagnostic information and ensure the unit is functioning correctly.
