S34HNNA-RNNM-00

  • Rated 4.6 (5 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options

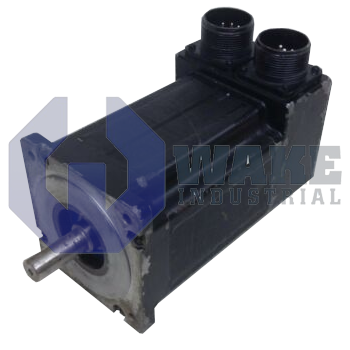

S Series Brushless Servo Motor manufactured by Pacific Scientific. This Brushless Servo Motor features a Holding Brake Option of No Brake along with a Frame Size/Stack Length of NEMA 34/4 Stack.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The high ranking of Pacific Scientific as among the best manufacturer of scalable, efficient and future proof motion control products has resulted in more effort to make better products. Many hours are spent in research and rigorous testing of the automation aftermarket accessories to ensure that quality construction is maintained and chances of faultiness are eliminated. With the integrated systems and modern technology at the center of the manufacturing process, customers enjoy cost-effective, innovative, powerful and customizable products. These products are also designed to accommodate a number of appliances. You can find quality motors, electric controllers, servo controllers and also supply modules.

Pacific Scientific’s S34HNNA-RNNM-00 motor continuous torque at standstill stands at 6.6 Nm while the peak torque is estimated to be 25.3 cost-effective. While the thermal resistance is estimated to be 0.850C/A, the unit’s moment of inertia is 0.64kgm3/10-3. This motor’s maximum static friction is estimated to be 0.19 Nm and the viscous damping coefficient is 0.073Nm/kRPM. The weight of the unit’s body is 8.1kgs while the thermal time constant is 30 minutes.

The S34HNNA-RNNM-00 motor’s winding data starts with torque constant which is estimated to be 1.7 Nm and its voltage constant is 1.07V/kRPM. Considering line to line, the inductance stands at 14.7 mH while the unit’s resistance is estimated to be 4.4 Ohms. The estimated current at peak torque stands at 13.7 Amps and the continuous stall current is 3.9A. When the DC Bus voltage is 320V and the AC Voltage is 240 V, the typical rated torque and speed are 5.6 Nm and 1500RPM respectively. At 400 VAC and 560VDC, the typical speed and torque stand at 3000 RPM and 4.3 Nm. Finally, at 640 VDC and 480 VAC, the rated speed is 3600RPM and the torque is 3.9Nm.

  • S34-HNNA-RNNM-00
  • S34HNNA RNNM 00
  • S34HNNA-RNNM-OO
  • S34HNNARNNM00

S34HNNA-RNNM-00 Technical Specifications

Motor Series: S Series 6-pole Neodymium
Sequence Number: Standard Listing
Frame Size/Stack Length: NEMA 34/4 Stack
Shaft & Mounting: NEMA Frame
Holding Brake Option: No Brake
Factory Preassigned: Factory Assigned
Primary Feedback: Size 21 Frameless Resolver
Secondary Feedback: No Secondary
Shaft Sealing: No Shaft Seal
Terminations: Motor mounted MS Connector
