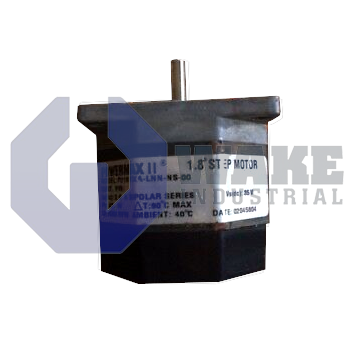

P21NRXA-LNN-NS-00

  • Rated 4.5 (17 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options

The P21NRXA-LNN-NS-00 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 5.5 Mounted °C/Watt and rotor intertia of .012 (kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of .78 Nm and a detent torque of .028 Nm.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The P-series Powermax II series by Pacific Scientific, have continually dominated the stepper motor scene, since they were first released for commercial use. The P21NRXA-LNN-NS-00 stepper motor, being a part of this series, also features the trademark high acceleration rate and good holding torque density.

According to the designated ‘P21N’ code, the motor is of standard type NEMA-23 frame and mounted with one rotor stack. It has a winding of ‘A’ category and is constructed according to the ‘regular’-construction specifications for Powermax II P-series motors. It has a receptacle for external connection. The P-series motors usually feature the same number of phases (2), along with a rotation per full step of 1.8o; this translates to a total of 200 full steps for a 360o rotation/1rev. The next ‘LNN’ designation describes the rotor type and shaft specifications: the motor has a standard rotor, and a smooth single-ended shaft. It is designed for an open-loop operation, without the option for an encoder feedback nor encoder mount. The final ‘00’ sequence number indicates that all its parts are of standard-type, with no customization. The holding torque range for this motor is between 0.57Nm and 0.81Nm, depending on the phase connection mode (with the former corresponding to unipolar connection and the latter to parallel and series connections). Its rotor has moments of inertia of 1.2 ×10-5 kgm2, even though the motor weighs a total 0.68kg. Its rated current varies from 2.8 to 5.6 Amperes (DC), phase resistance within 0.23 -0.92 ohms, and phase inductance between 0.8 and 3.2mH.

Finally, it has a detent torque of 0.028Nm, which is 3.5% of the maximum holding torque. This ensures it delivers more torque under loading, however with a slightly reduced stopping torque.

  • P21 NRXA LNN NS 00
  • P21-NRXA-LNN-NS-00
  • P21NRXA LNN NS 00
  • P21NRXA-LNN-NS-OO
  • P21NRXALNNNS00
  • P21NRXALNNNSOO

P21NRXA-LNN-NS-00 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 0.45 kg
Type: Standard
Thermal Resistance: 5.5 Mounted °C/Watt
Rotor Inertia: .012 (kg-m²x10¯³)
Holding Torque: .78 Nm
Detent Torque: .028 Nm
Encoder Option/Sequence Number: No Feedback/Standard
Size: NEMA 23
Number of Stacks: 1 Stack
Mounting: NEMA
Construction: Regular
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Single/Smooth
