SRF3650-4823-84-5-56BC-CU

  • Rated 4.6 (18 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options

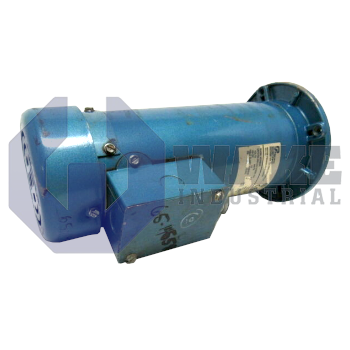

Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 6.9.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

SRF3650-4823-84-5-56BC-CU

  • Rated 4.6 (18 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options
Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 6.9.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a SRF3650-4823-84-5-56BC-CU to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The automation Industry always looks for better, lighter and more hi-tech solutions. Pacific Scientific is known for meeting these requirements, through high-quality servo systems, synchronous motors and other motion and logic modules. The PMDC series motors by PacSci is a popular project that has launched a wide variety of motors for different purposes. Among them SR and SRF series of permanent magnet motors has received quite a recognition, because these motors are highly adaptable, durable, and conform with the international standards as well. The SRF3650-4823-84-5-56BC-CU is yet another PMDC motor that offers durability, safe operations and smooth performance.

The SRF3650-4823-84-5-56BC-CU permanent magnet motor belongs to the SRF series and follows SCR Rated NEMA standards. It has a product code FGS2749. The 90Vdc motor is 13.25 inches in length and it weighs around 30 pounds. What makes this motor more powerful is its high torque and current along with low-rotor inertia. The PMDC motor offers a continuous current up to 6.9 amperes, and peak current up to 81.0 Amperes while maintaining a continuous torque of 27 pounds per inch. At the same time it delivers 0.7 ohms resistance which is comparatively lower than other models of the series. This high torque-low resistance gives the ability to achieve top acceleration/deceleration pretty quickly.

The powerful 90Vdc motor offers ¾ HP power which is equivalent to 559.28 watts. The 7.8 pounds per inch inertia is not as low as other models, but still, it’s sufficient enough to stop the motor quickly. The SRF3650-4823-84-5-56BC-CU motor also offers 3.7mH inductance. The NEMA 56C mounting and TEFC enclosure adds to extra protection and durability to the motor.

  • SRF3650 4823 84 5 56BC CU
  • SRF3650482384556BCCU
  • SRF365O-4823-84-5-56BC-CU

SRF3650-4823-84-5-56BC-CU Technical Specifications

Product Code: FGS2749
Configuration (facing p age): 2
NEMA Frame: 56C
Enclosure: TEFC
Current (Amps): 6.9
Torque (lb-in.): 27
Current (Peak/A): 81
Torque Constant (lb-in./A): 4.2
Resistance (Ohms): 0.7
Inertia (lb-in.): 7.8

Frequently Asked Questions about SRF3650-4823-84-5-56BC-CU


Q: What are the key specifications of the SRF3650-4823-84-5-56BC-CU motor?

A: The SRF3650-4823-84-5-56BC-CU is a PMDC motor with a length of 13.25 inches, weighing approximately 30 pounds, and boasting high torque and current with low rotor inertia.

Q: How does the SRF3650-4823-84-5-56BC-CU motor compare to other models in terms of inertia?

A: While it has a 7.8 pounds per inch inertia, not the lowest in the range, it is sufficient for quick motor stops, thanks to its high torque and current.

Q: What is the power output of the SRF3650-4823-84-5-56BC-CU motor in terms of horsepower?

A: This motor offers HP power equivalent to 559.28 watts, making it a powerful choice for various applications.

Q: What mounting standard does the SRF3650-4823-84-5-56BC-CU motor adhere to?

A: The motor follows NEMA 56C mounting standards, ensuring compatibility with standard equipment configurations.

Q: What type of enclosure does the SRF3650-4823-84-5-56BC-CU motor feature for protection?

A: The SRF3650-4823-84-5-56BC-CU motor is equipped with a TEFC (Totally Enclosed Fan-Cooled) enclosure, providing extra protection and durability for demanding environments.

Internal Product Review

  • ‘‘This motor SRF3650-4823-84-5-56BC-CU stands out for its adherence to NEMA standards, and it has demonstrated impressive performance characteristics. The motor's 90 VDC power supply and high torque, combined with low inertia, make it an excellent choice for applications requiring quick acceleration and deceleration.’’
