SR3632-8292-7-56BC-CU

  • Rated 4.5 (31 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships Today
  • Call for Expedited Shipping and Product Condition Options

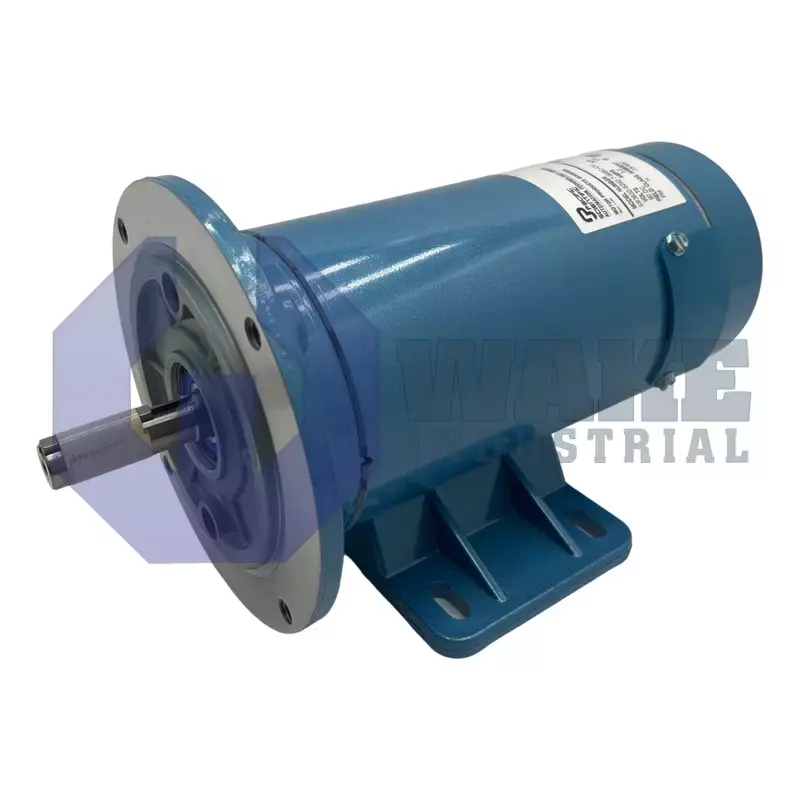

Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 3.5.
✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

SR3632-8292-7-56BC-CU

  • Rated 4.5 (31 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships Today
  • Call for Expedited Shipping and Product Condition Options
Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 3.5.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen is dedicated to help businesses build faster and better machines and the SR3632-8292-7-56BC-CU is one of its kinds. Over the past few years numerous industries depended upon Kollmorgen’s Permanent Magnet (PMDC) motors. The high quality rugged motors are backed by 2 years warranty and they deliver high performance and value.

The SR3632-8292-7-56BC-CU is 56C NEMA framed and it has a TENV enclosure. Its continuous rating current is 3.5 amps and its continuous rating torque is 12.0 lb-in. The peak current of the SR3632-8292-7-56BC-CU is 71.0 amps, and it’s torque constant is 3.9 (Ib-in./A. The SR3632-8292-7-56BC-CU has a 5 Ib-in inertia, its resistance is 1.8 Ohms and the inductance of the SR3632-8292-7-56BC-CU is 6.6 millineries. The SR3632-8292-7-56BC-CU weighs 21 lbs and it has a total length of 10.13 inches.

The SR3632-8292-7-56BC-CU has class H insulation and it has a NEMA C face with removable face. You can use the tachometer adapter kit to examine the speed of motor. Follow the instructions that are mentioned in the kit for easy mounting of the SR3632-8292-7-56BC-CU. Keep in mind that the adaptor kits can only be applied to the specific motors but not all of them. If your motor does not accept the adaptor make sure you contact its manufacturer. For the SR3632-8292-7-56BC-CU with a motor enclosure TENV, use the 40PA57-36/37-TENV-S small tachometer adaptor kit. The required voltage for NEMA standards SCR rate motor has 90 and 180 DC.

Kollmorgen is dedicated to build help businesses build a better and faster machines. These environmentally protected models have wash-down duty and explosion proof. It has NEMA or metric mounting. Follow the instructions given in the kit to ensure safe mounting.

  • SR3632 8292 7 56BC CU
  • SR36328292756BCCU

SR3632-8292-7-56BC-CU Technical Specifications

Product Code: FGS2432
Configuration (facing p age): 1
NEMA Frame: 56C
Enclosure: TENV
Current (Amps): 3.5
Torque (lb-in.): 12
Current (Peak/A): 71
Torque Constant (lb-in./A): 3.9
Resistance (Ohms): 1.8
Inertia (lb-in.): 5

Frequently Asked Questions about SR3632-8292-7-56BC-CU


Q: What is the NEMA frame and enclosure type of the SR3632-8292-7-56BC-CU?

A: The SR3632-8292-7-56BC-CU is 56C NEMA framed with a TENV enclosure. This specific framing and enclosure ensure both compatibility and protection for varied applications.

Q: What are the continuous rating current and torque for the SR3632-8292-7-56BC-CU?

A: The continuous rating current is 3.5 amps, and the continuous rating torque is 12.0 lb-in. These specifications highlight the motor's efficient energy consumption and consistent performance under load.

Q: What's the peak current and torque constant of the SR3632-8292-7-56BC-CU?

A: The peak current is 71.0 amps, and its torque constant is 3.9 lb-in./A. This indicates the motor's capability to handle high transient loads and its predictable torque output per amp.

Q: Which tachometer adapter kit is suitable for the SR3632-8292-7-56BC-CU with a TENV motor enclosure?

A: For a TENV motor enclosure, the 40PA57-36/37-TENV-S small tachometer adaptor kit should be used. This kit is specifically designed to measure the motor's speed accurately with minimal installation hassle.

Q: What's the required voltage for the SR3632-8292-7-56BC-CU in accordance with NEMA standards SCR rate motor?

A: The required voltage for NEMA standards SCR rate motor is 90 and 180 DC. This dual voltage requirement ensures flexibility and compatibility across various power supplies.

Internal Product Review

  • ‘‘The SR3632-8292-7-56BC-CU boasts a NEMA frame and TENV enclosure. With its adaptability using the 40PA57-36/37-TENV-S kit, it offers reliability and seamlessly aligns with NEMA SCR standards.’’
