OC950-503-01

  • Rated 4.6 (32 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships in 3 Days
  • Call for Expedited Shipping and Product Condition Options

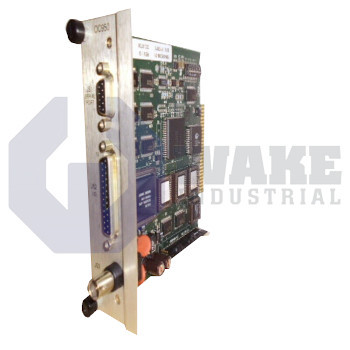

OC950 Series Programmable Option Card manufactured by Pacific Scientific. This Option Card features a Version of Standard along with a Network Interface of PacLAN.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The OC950-503-01 is manufactured by Pacific Scientific, a renowned manufacturer in the field. This manufacturer has over the years upheld its name by creating only the best products. They use their expertise in engineering along with a successful history to continue to bring powerful, reliable and cost-effective products to market. They ensure that all their products are manufactured after rigorous testing, trade studies and mathematical modeling to create top quality products such as the OC950-502-01 positioning option card.

This positioning option card is quite advantageous as it is cost-effective and also a very high performing device. This part is designed to work with brushless, resolver equipped 3 phase permanent magnet motors and medium power single-axis servo drives. This positioning option card is suitable for use with medium to large volume OEM applications. This ensures that the product is quite a versatile one with the ability to be integrated with different applications across a number of different industries.

The OC950-503-01 is quite a feature-rich option. It is packed with top features including an all-digital based DSP control. This digital control even operates during current loops. Thanks to digital auto-tuning, the setup and use of the product are quite easy. This positioning option card from Pacific Scientific makes use of advanced digital resolver to digital converter and use patented technology to make this possible. The unit was designed in a modular fashion and there is the option to remove the positioning option card. Removing the card can help to make configuring the product a bit easier. The option card can use multiple interfaces including a multi-axis fiber optic SERCOS interface along with a serial RS 232/485 interface.

  • 0C950-503-01
  • OC950 503 01
  • OC950-50x-01
  • OC95050301
  • OC95O-5O3-O1

OC950-503-01 Technical Specifications

Product type: Option card
Output current: 200 mA
Version: Standard
Memory: 32kx8 NVRAM
Network Interface: PacLAN
Programming Software: ServoBASIC Plus
Cluster Size: 255 drives
PC Connectivity: DDE Servers for Windows NT/Communications DDLs for Windows 95/Win 98/Win NT
Serial interface: RS-232/RS-485
Output voltage: 5 Volts

Frequently Asked Questions about OC950-503-01


Q: What is the function of the option card?

A: When installed in a SC900 drive, the card enables single-axis positionng capability.

Q: What is the data transmission capability of the PacLAN interface?

A: The PacLAN interface can communication at 2.5 MB/s.

Q: How can you set the communication address for the card?

A: You can use the S1 switch to set the communication address of the card.

Q: What baud rates does the serial interface support?

A: The serial interface supports two software-selectable baud rates: 9600 and 19200 bps.

Q: For how long is data retained in the NVRAM?

A: Retention duration for NVRAM data is 10 years.

Internal Product Review

  • ‘‘OC950-503-01 enables single-axis programmable positioning capability for the SC900 digital servo drive. ’’
