Product Description:

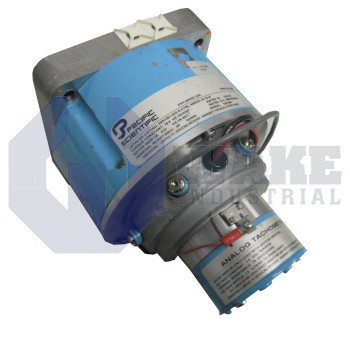

The 55NM81-020-5-CTRL is a permanent-magnet DC servomotor produced by Pacific Scientific in its Low Inertia PMDC Servomotors series. Designed for quick acceleration and precise velocity control, the unit converts drive power into rotary motion while supplying position feedback for closed-loop axes in pick-and-place equipment, small gantries, and indexing tables. The reduced rotor inertia lets motion controllers command rapid starts and stops, making the motor suitable for light loads that must track dynamic command profiles without overshoot.

This motor ships with integrated feedback hardware for closed-loop operation. The encoder electronics operate from a regulated 5 VDC ±5% logic rail and draw only 120 mA, minimizing demand on the controller's auxiliary supply. The feedback section provides a sine output so interpolation hardware can reconstruct fine position increments without digital aliasing. This configuration uses a single signal channel, so angle is derived through amplitude demodulation rather than conventional quadrature decoding. A zero-reference marker is included, and that pulse lets the drive establish an accurate mechanical datum at power-up while supporting repeatable homing.

The dynamic profile is aided by an added inertia of <0.000001 oz-in-s², allowing the drive to reverse direction with very little stored rotational energy. Position fidelity is preserved by the optical encoder, whose phase jitter stays below <1.0% peak-to-peak even at maximum rated speed. An internal LED serves as the illumination source, providing consistent light intensity over long operating hours and reducing drift in edge-detection circuits. These characteristics support stable velocity loops, low tracking error, and high repeatability in compact assembly machines and laboratory automation platforms.
