Product Description:

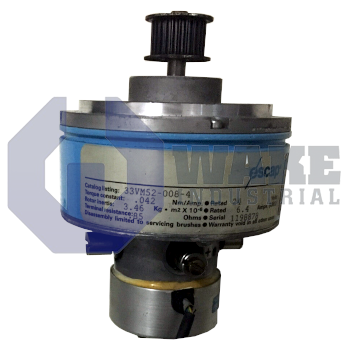

The 33VM52-008-4 is a low-inertia permanent-magnet DC servomotor manufactured by Pacific Scientific within its Low Inertia PMDC Servomotors series. This motor is intended for rapid acceleration tasks such as pick-and-place axes and light conveyor sections where low rotor inertia minimizes response time. When paired with a drive and position feedback, it converts electrical current into precise rotary motion, supplying closed-loop speed and position control in industrial automation cells.

Mechanical and thermal characteristics describe how the unit performs in service. The armature uses Carbon brushes that withstand arcing and maintain low contact resistance during high-cycle operation. Flux is supplied by Alnico V-7 permanent magnets, giving stable field strength over a wide operating temperature range. Because of the lack of forced-air cooling, the housing must be mounted where natural convection or an external cabinet fan can remove heat. A high torque-constant winding raises torque per ampere, reducing current demand for the same mechanical load. The feedback electronics consume only 150 mA, keeping the burden on the system power supply small while still delivering reliable position data. No tachometer is attached, so velocity information is derived from the encoder alone.

Position sensing is handled by an optical encoder illuminated by an internal LED. It operates from a regulated 5 VDC supply provided by the controller and returns a square dual-channel pulse train suitable for standard quadrature decoding. The channels are accompanied by an index pulse that marks one mechanical revolution and simplifies homing sequences at startup. This digital format eliminates analog drift, supports high-resolution interpolation, and maintains signal integrity along shielded cables in electrically noisy plant environments.
