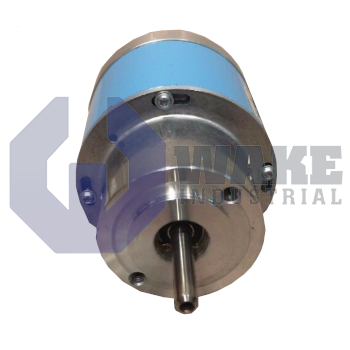

2VM62-004-4 Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
10 Seconds
The Pacific Scientific 2VM62-004-4 is a servomotor from the Low Inertia PMDC Servomotors series with a body diameter of 2.7 inches and weighs 2.75 pounds. It features an LED optical encoder, no forced-air cooling, and uses an Alnico V-7 magnet material. The motor has a shaft diameter of 0.249 inches, an overall length of 4.042 inches, and a power dissipation of 54 watts.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 2VM62-004-4 is a permanent-magnet DC servomotor from Pacific Scientific in the Low Inertia PMDC Servomotors series. Designed for closed-loop speed and position control, it provides quick torque rise for pick-and-place modules, light conveyors, and other small industrial axes. By coupling with an external drive and feedback device, the motor delivers the fast response needed to keep throughput high while maintaining repeatable motion profiles in automated equipment. Its armature and lightweight rotor minimize moment of inertia, helping machines shorten cycle times.
Physical size supports tight panel layouts: the cylindrical body measures 2.700 in in diameter and overall length is 4.042 in, so the motor fits into confined assemblies. Despite the compact envelope, it weighs only 2.75 lb, easing integration on sliding carriages. Heat generated during operation is limited to 54 W of power dissipation, and this load is transferred to ambient air through conduction because the design specifies no forced-air cooling. A thermal resistance of 2.41 °C/W describes how rapidly the frame climbs in temperature under continuous current. Alnico V-7 magnets supply the flux path, and the 2.450-inch mounting bolt circle lines up with standard NEMA 23 mounting plates for direct installation on common fixtures.
The output shaft is intended for direct coupling to gears or pulleys; its diameter is 0.249 in with a keyed engagement length of 1.378 in to support moderate overhung loads. Position information is provided by a square dual-channel optical encoder that uses an LED light source and operates from a regulated 5 Vdc ±5% supply at up to 150 mA. Because the encoder omits a zero index, homing routines must reference an external sensor. No analog tachometer is installed, so speed feedback is strictly digital. Static friction torque is 1.8 oz-in, giving predictable breakaway characteristics for precision stall-holding applications.
Frequently Asked Questions about 2VM62-004-4:
Q: What type of encoder does the 2VM62-004-4 servomotor have?
A: The 2VM62-004-4 servomotor features a dual-channel square optical encoder without a zero index for feedback.
Q: What magnet material is used in the 2VM62-004-4 PMDC servomotor?
A: This servomotor uses Alnico V-7 as its magnet material.
Q: What is the required supply voltage for the encoder on the 2VM62-004-4?
A: The supply voltage required for the encoder is 5 Vdc ±5%.
Q: How is the 2VM62-004-4 servomotor cooled?
A: No forced-air cooling is employed; it relies on natural convection for heat dissipation.
Q: What is the power dissipation of the 2VM62-004-4 servomotor?
A: The power dissipation of the 2VM62-004-4 servomotor is 54 watts.
