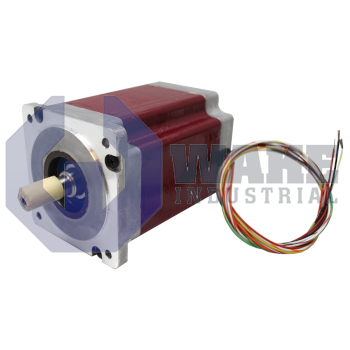

K Series POWERPAC Hybrid Step Motor manufactured by Pacific Scientific. This POWERPAC Hybrid Step Motor features a Mounting Configuration of Heavy duty NEMA along with a Size of NEMA 34 frame size; 3.38 width/height, square grame.

K34HRHJ-LNK-NS-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
K Series POWERPAC Hybrid Step Motor manufactured by Pacific Scientific. This POWERPAC Hybrid Step Motor features a Mounting Configuration of Heavy duty NEMA along with a Size of NEMA 34 frame size; 3.38 width/height, square grame.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a K34HRHJ-LNK-NS-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The K Series POWERPAC's Hybrid stepped Motors are some of the prime products manufactured by Pacific Scientific. Their heavy duty NEMA Mounting Configuration with the standard Size NEMA 34 frame along with many inbuilt state-of-the-art features gives these motors an edge over other manufacturers’ products.

K34HRHJ-LNK-NS-00 comes from the basic Sigmax series that has features like the frame NEMA 34 which is of 3.38-inch width/height size with a square frame and comes with 3 stacks of rotors. It also has a regular lead wire system with four lead parallel winding. As given in the nomenclature listed as NS - it has the encoder option of no feedback and special sequence of the special motor with no shaft seal.

K34HRHJ-LNK-NS-00 has superior design laminated rotors and has a straight key shaft which permit easy Shaft Configuration/Shaft Modifications. It also has 4 Lead parallel, the standard type of Winding Leads. It has high-speed technology and delivers an enviable power of Holding Torques up to 5700 oz-in which is commendable for its size and much higher than any other motor in its class.

Among its more outstanding features of K34HRHJ-LNK-NS-00 is the provisions of magnets in a “housing-less” frame and superior designed large diameter rotor that produces more torque, thus giving optimum acceleration capabilities. It also has low torque that enables smoother micro-stepping and control.

The configuration is quite clear from the nomenclature but in case you are wondering how to select the motor that suits your operational needs then all you have to do is to use the patented OPTIMIZER™ Version 3.0 application which the best solution and indicates the best POWERPAC motor suited to your specific requirements.

  • K34-HRHJ-LNK-NS-00
  • K34HRHJ LNK NS 00
  • K34HRHJ-LNK-NS-OO
  • K34HRHJLNKNS00

K34HRHJ-LNK-NS-00 Technical Specifications

Basic Series: Sigmax
Encoder Option/Special Sequence: No feedback/Standard motor-no shaft seal
Size: NEMA 34 frame size; 3.38 width/height, square grame
Number of Rotor Stacks: 4 Stacks
Mounting Configuration: Heavy duty NEMA
Construction/Hookup: Regular/leadwire
Winding Leads: 4 Lead parallel
Winding Type: Standard
Rotor Type: Laminated
Shaft Configuration/Shaft Modifications: Single/Straight Key
