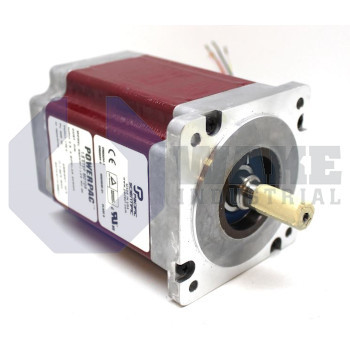

K Series POWERPAC Hybrid Step Motor manufactured by Pacific Scientific. This POWERPAC Hybrid Step Motor features a Mounting Configuration of Heavy duty NEMA along with a Size of NEMA 34 frame size; 3.38 width/height, square grame.

K32HRLG-LNK-NS-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
K Series POWERPAC Hybrid Step Motor manufactured by Pacific Scientific. This POWERPAC Hybrid Step Motor features a Mounting Configuration of Heavy duty NEMA along with a Size of NEMA 34 frame size; 3.38 width/height, square grame.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a K32HRLG-LNK-NS-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen is a pioneer in the engineering world, producing equipment such as stepper motors, servomotors, stepper drives PCMM, and gear heads, with the highest level of precision & the best quality standards available in the market. The clientele of Kollmorgen ranges from medical imaging, Pharmaceutical manufacturing, Oil & Gas, Aerospace defense etc. The company also deal in warehouse automation, which includes AGV systems and software.

The K/N series stepper Motor is a high torque low speed machine, with the added advantage of being super compact. The motor completes one full rotation in 200 steps, with each individual step consisting of a 1.8 Degree rotation, making it ideal for use in precise instruments such as robots and telescopes. The K/N series stepper motor has higher torque and acceleration rated due to the addition of the patented SIGMAX technology, a feature that only Kollmorgen provides. The motors are available in 2 & 4 phases, and have a insulation class B, which can bear temperatures up to 130oC.

The Kollmorgen K32HRLG-LNK-NS-00 Stepper Motor is one of the many motors under the K series, with an enhanced 2 stack design and a holding torque of 11.1 Nm. It operates with a rated current of 1.91 Amp DC. The shaft has been designed in order to cater for high operational loads, with a max radial force of 289 N and max axial force of 1360 N. The stepper motor has a thermal resistance of 2oC/Watt and an operating temperature range between -20oC and 40oC, thus making it the most viable option for operations with extreme temperatures without having to lose excessive efficiency.

  • K32-HRLG-LNK-NS-00
  • K32HRLG LNK NS 00
  • K32HRLG-LNK-NS-OO
  • K32HRLGLNKNS00

K32HRLG-LNK-NS-00 Technical Specifications

Basic Series Sigmax
Encoder Option/Special Sequence No feedback/Standard motor-no shaft seal
Size NEMA 34 frame size; 3.38 width/height, square grame
Number of Rotor Stacks 2 Stacks
Mounting Configuration Heavy duty NEMA
Construction/Hookup Regular/leadwire
Winding Leads 4 Lead series
Winding Type Factory Assigned
Rotor Type Laminated
Shaft Configuration/Shaft Modifications Single/Straight Key
