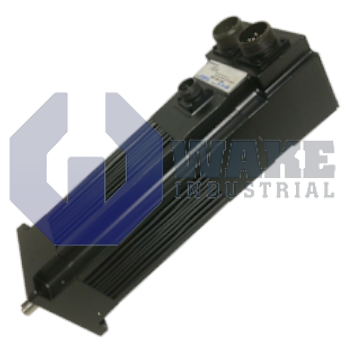

F45HENA-R2-NS-NV-00
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The F45HENA-R2-NS-NV-00 is part of Pacific Scientific's F Servomotors series, constructed from EN-AW 6082 T6 material with an anodized E6/EV1 natural coating. It has a profile width and height of 45mm each. The servomotor boasts a moment of inertia of 44.5 cm? and operates within a temperature range of -40 degrees C to +80 degrees C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The F45HENA-R2-NS-NV-00 Servo Motor delivers high inertia and precision for demanding applications. It features a ferrite magnet rotor and English standard shaft with no seal. This model does not include a holding brake.
The winding configuration of the F45HENA-R2-NS-NV-00 Servo Motor corresponds to Type F. This indicates its specific electrical characteristics such as voltage constant (Ke), torque constant (Kt) and winding resistance. The feedback is achieved via an integrated Size 21 frameless resolver operating in transmitter mode which outputs analog sine and cosine signals corresponding to rotor position. This resolver provides absolute position feedback without the need for an additional encoder or secondary feedback device. The motor belongs to the Pacific Scientific F Series line of brushless servo motors. This model features a permanent magnet synchronous motor (PMSM) design that is optimized for high performance motion control applications. The motor is engineered with high energy rare earth magnets that allows for high torque to inertia ratios. This model incorporates integrated Hall effect sensors which provide accurate and real time feedback on rotor position. It offers an optional encoder that delivers high resolution position and speed feedback that further enhances performance by enabling fine grained monitoring and control of the motor's rotational speed and angular position. Its low cogging torque and thermal management design ensure smooth and reliable operation even in demanding industrial environments.
The F45HENA-R2-NS-NV-00 Servo Motor is engineered with an anti cogging electromagnetic design that significantly minimizing detent torque to ensure ultra smooth torque delivery and precise velocity control especially at low speeds. The motor features a Totally Enclosed Non Ventilated (TENV) housing rated to IP65. This provides robust protection against dust ingress and low pressure water jets that makes it suitable for harsh industrial environments.
Frequently Asked Questions about F45HENA-R2-NS-NV-00:
Q: How does the resolver in the F45HENA-R2-NS-NV-00 Servo Motor maintain position accuracy?
A: The F45HENA-R2-NS-NV-00 uses a frameless Size 21 resolver in transmitter mode. It outputs analog sine and cosine signals for absolute rotor position without external encoders.
Q: Is the F45HENA-R2-NS-NV-00 Servo Motor suitable for harsh conditions?
A: Yes it features a TENV housing with IP65 rating. This protects against dust intrusion and low pressure water jets in tough industrial settings.
Q: What type of winding configuration is used in model F45HENA-R2-NS-NV-00?
A: It uses a Type F winding layout designed for specific electrical traits. These include defined values of torque constant voltage constant and winding resistance.
Q: How does the F45HENA-R2-NS-NV-00 Servo Motor perform in dynamic load environments?
A: The PMSM design allows continuous torque delivery up to 50 Nm. It supports variable load cycles and maintains precision in high demand operations.
Q: Does the F45HENA-R2-NS-NV-00 provide smooth low speed motion?
A: Yes, the anti cogging electromagnetic design reduces detent torque significantly. This ensures stable torque output and accurate low speed velocity control.
