F43GCNA-R2-NS-VS-00
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The F43GCNA-R2-NS-VS-00 is a 3-way globe control valve with a size of 2 inches (DN 50) and a pressure rating of Class 150. Manufactured by Pacific Scientific as part of the F Servomotors series, it features an ANSI flanged connection and a carbon steel body. The valve operates with a pneumatic spring-return actuator.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

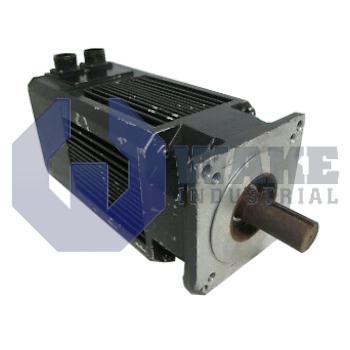

The F43GCNA-R2-NS-VS-00 is a high-performance brushless motor by Pacific Scientific manufacturer. With its rugged construction and reliable performance it ensures long-term durability and efficiency. It belongs to the F Servomotors series offering advanced features for various applications.
The Pacific F43GCNA-R2-NS-VS-00 brushless motor operates with both 100 Vdc and 24 Vdc voltage options. It delivers a continuous stall torque of 3.6 Nm and a peak torque of 9.2 Nm. The motor's torque constant (KT peak) is 1.22 Nm/A that provides efficient torque generation. The voltage constant (KE peak) is 1.22 V/rad/sec that results in smooth operation and steady performance. At peak torque the current hits 10.8 amps. The continuous stall current of the motor is 3.6 A. The resistance value of this motor is 7.7 Ohms with an inductance of 49 mH. This combination of standards ensures that the motor works well under varied loads. The motor has a brushless design with ferrite magnets to improve efficiency and reduce friction. It features a durable TENV casing with NEMA and IP65 waterproof standards, ensuring longevity and protection in harsh settings. The shaft has a Viton seal for enhanced protection.
The Pacific Scientific 's F43GCNA-R2-NS-VS-00 brushless motor weighs 7.5 kg and has a length of 213.4 mm with a reference length of 178.1 mm. It contains thermal protection via a PTC thermistor, which ensures over-temperature safety. With a thermal resistance of 0.84 degrees C/Watt and a thermal time constant of 30 minutes this motor performs well at 25 degrees C. It is suited for applications that require great dependability and smooth operation. The motor also has an anti-cog design and NEMA mounting choices which provide for greater system integration flexibility.
Frequently Asked Questions about F43GCNA-R2-NS-VS-00:
Q: Why does the Pacific Scientific F43GCNA-R2-NS-NV-00 not include a shaft seal?
A: The lack of a shaft seal makes the motor more versatile in certain applications. It allows for simplified design and ease of maintenance.
Q: How does the IP65 rating of the F43GCNA-R2-NS-NV-00 improve its performance?
A: The IP65 rating ensures the motor is resistant to dust and water ingress. It protects the motor from external environmental factors, enhancing reliability in harsh conditions.
Q: How does the NEMA 56C compatibility benefit the F43GCNA-R2-NS-NV-00?
A: NEMA 56C compatibility ensures the motor can be easily mounted in standard industrial settings. This reduces setup time and allows for seamless integration into existing systems.
Q: How does the Pacific Scientific F43GCNA-R2-NS-NV-00's peak torque impact its application?
A: With a peak torque of 81 lb-in (9.2 Nm), this motor is suited for applications requiring high power output. It allows for fast acceleration and quick response times in industrial machinery.
Q: What is the significance of the anti-cog magnet design in the F43GCNA-R2-NS-NV-00?
A: The anti-cog magnet design reduces motor cogging during low-speed operation. This results in more precise and smoother motion in precision control applications.
