F43GCNA-R2-NS-NV-00
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days
The F43GCNA-R2-NS-NV-00 servomotor features a four-way, three-position closed-center valve type, operates with a 24V DC solenoid, and supports a flow capacity of 2.5 cv. Part of the F Servomotors series by Pacific Scientific, it has an aluminum housing, nitrile seals, and operates in temperatures ranging from -10 degrees C to +50 degrees C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

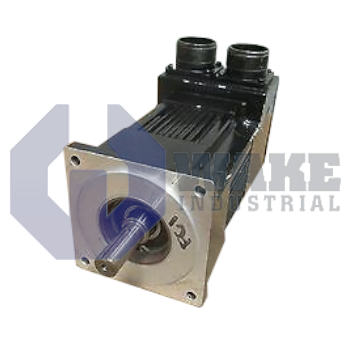

The Pacific Scientific F43GCNA-R2-NS-NV-00 is a high-efficiency brushless servo motor. It belongs to the F40 series and possesses a 4.25-inch square frame. Engineered for precision applications, it provides an array of sophisticated electrical and mechanical functionalities.
The F43GCNA-R2-NS-NV-00 motor uses a ferrite rotor magnet and does not contain a shaft seal. Its frame is contained in a TENV enclosure which has an IP65 waterproof rating except for the shaft seal region. It is also NEMA 56C compliant that allows for convenient mounting. It has a static friction of 0.70 lb-in and a viscous damping coefficient of 0.18 lb-in/Krpm, resulting in smooth operation. It weighs only 16.6 pounds and provides a compact yet durable solution. The motor has 155 degrees C windings, offering outstanding thermal performance with a thermal resistance of 0.84 degrees C/W and a thermal time constant of 30 minutes. It provides versatile electrical layouts by providing voltage options of 100 VDC and 24 VDC. The principal feedback is provided by a frameless resolver, ensuring precise placement. The motor has a sustained stall torque of 32 lb-in and a peak torque of 81 lb-in, making it suitable for demanding applications. The motor's current rating is 0.22 A with a peak current of 10.8 A at maximum torque. It also has over-temperature protection with a PTC thermistor for enhanced reliability.
The Pacific Scientific F43GCNA-R2-NS-NV-00 sophisticated design characteristics ensure dependable and efficient performance. It features connectors MS3102E20-4P for the motor and MS3102E20-7P for feedback which provide secure and long-lasting connections. Periodic lubrication is essential when employing a shaft seal. The motor is backed by a one-year warranty, giving users piece of mind. This servo motor is designed for a wide range of applications, providing great precision, smooth low-speed performance and exceptional endurance.
Frequently Asked Questions about F43GCNA-R2-NS-NV-00:
Q: Why does the Pacific Scientific F43GCNA-R2-NS-NV-00 not include a shaft seal?
A: The lack of a shaft seal makes the motor more versatile in certain applications. It allows for simplified design and ease of maintenance.
Q: How does the IP65 rating of the F43GCNA-R2-NS-NV-00 improve its performance?
A: The IP65 rating ensures the motor is resistant to dust and water ingress. It protects the motor from external environmental factors, enhancing reliability in harsh conditions.
Q: How does the NEMA 56C compatibility benefit the F43GCNA-R2-NS-NV-00?
A: NEMA 56C compatibility ensures the motor can be easily mounted in standard industrial settings. This reduces setup time and allows for seamless integration into existing systems.
Q: How does the Pacific Scientific F43GCNA-R2-NS-NV-00's peak torque impact its application?
A: With a peak torque of 81 lb-in (9.2 Nm), this motor is suited for applications requiring high power output. It allows for fast acceleration and quick response times in industrial machinery.
Q: What is the significance of the anti-cog magnet design in the F43GCNA-R2-NS-NV-00?
A: The anti-cog magnet design reduces motor cogging during low-speed operation. This results in more precise and smoother motion in precision control applications.
