Product Description:

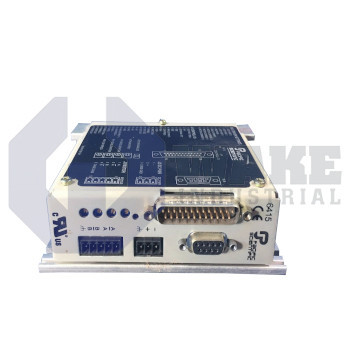

The 6415-001-C-N-N is a microstep drive manufactured by Pacific Scientific within the 6415 Microstep Drives series. This unit conditions low-level step and direction commands from motion controllers and converts them into high-resolution current waveforms for two-phase hybrid stepper motors used in industrial automation. A closed housing, panel mounting, and a 1.0 lb weight simplify installation inside equipment enclosures where space and thermal limits are critical for drive electronics.

The command interface accepts analog velocity or torque trim through an input impedance of 20 kΩ across a control range of ±10 Vdc. Internally, the switch-mode power stage uses a 20 kHz chopper frequency to regulate winding current while minimizing audible noise. For dynamic axes, the drive can source up to 5.0 A RMS per phase, and acceleration profiles are protected by a minimum ramp time of 50 ms to avoid torque spikes in loaded mechanisms. Separate logic outputs provide a +8 V reference at 50 mA and a 100 mA step output for companion modules, reducing the need for external power rails. The chassis temperature must remain below 60 °C, so adequate panel airflow is required when the drive operates near its current limit.

Primary DC power may range from 24 Vdc to 75 Vdc, allowing the same drive to suit light-duty laboratory axes or higher-torque factory stages. Pulse command inputs are accepted up to 500 kHz, giving the controller flexibility to run fine microstep resolutions without missing edges. During continuous service, the ambient temperature must not exceed 50 °C, and the unit should remain above 0 °C to help prevent condensation on the circuit board. These electrical and thermal limits help users match motor impedance, cabling length, and enclosure ventilation to the motion profile without exceeding component ratings.
