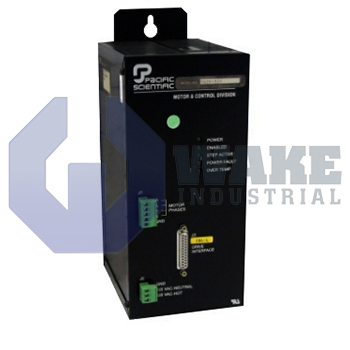

5000 Series Stepper Motor Drive manufactured by Pacific Scientific. This Stepper Motor Drive features a Functionality & Drive Configuration of Integral power supply and a Power Level of 11.3 A peak, 8 A rms, 160 Vdc with integral power supply.

5630

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
5000 Series Stepper Motor Drive manufactured by Pacific Scientific. This Stepper Motor Drive features a Functionality & Drive Configuration of Integral power supply and a Power Level of 11.3 A peak, 8 A rms, 160 Vdc with integral power supply.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a 5630 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The 5630 module is intended to be used with the Pacific Scientifics’ series of hybrid servo-stepper motors. This drive is designed to work flawlessly with both, the standard line as well as the enhanced line of similar high-performance hybrid motors. It supports the system in which the current rating value of the motor winding is compatible with the drive package's output current ie in the range of - 5.0,6.0, 7.5, up to 8.0 Amp RMS (with 7.1, 8.5, 10.6, and 11.3 Amps as the peak values).

The 5630 module has many characteristics that make it ideal for working on the series Pacific Scientifics’ 5000 series of stepper motors. It supports an input voltage of 115 volts ac (with ± 15% variation) and the Input current of 13 A RMS (maximum). The drive circuit is compatible to generate the two-phase, bipolar, chopper regulated current output on a nominal 160-volt dc Bus voltage with the 115 volts ac input. It has a selectable Switch for Rated current that gives the options for nominal values as 8.0 A RMS (at 11.3 A peak micro-stepping), 7.5 A RMS (at 10.6 A peak micro-stepping), 6.0 A RMS (at 8.5 A peak micro-stepping) and 5.0 A RMS (at 7.1 A peak micro-stepping).

The Pacific Scientific® equipment stands tall among its competitors for its robust built quality, safety, and easy functionality. 5630 motor drive is accordingly made to the best of standards and is very user- friendly. Mounting this drive in the system is achieved by selecting the standard 8-inch (205 mm) size NEMA frame. Once configured, it is an ideal electronic unit that transforms stepped and direction inputs into compatible motor winding currents and controls the connected bipolar, two-phase stepping motors.

  • 563O

5630 Technical Specifications

Drive Type: Stepper Drive (5000)
Drive Type:
Power Level: 11.3 A peak, 8 A rms, 160 Vdc with integral power supply
Functionality & Drive Configuration: Integral power supply
