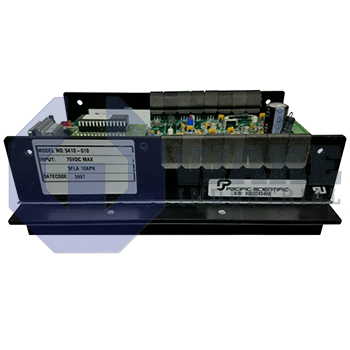

The 5410-010 stepper motor driver operates on an input voltage of 18–75 Vdc, features a chopper frequency of 20 kHz, supports step modes ranging from full step to 1/125, and includes an idle current reduction of 50%. Manufactured by Pacific Scientific as part of the 5000 Stepper Motors series, it also offers opto-isolated TTL logic input.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 5410-010 is developed by the top manufacturer Pacific Scientific and basically reflects advanced design that delivers reliability in diverse environments. Offering a minimum logic input sink current of 10 mA, the unit guarantees proper operation and smooth system compatibility. Its microstep current is calibrated at 5.0 A with the tolerance of ±0.1 A. This allows accurate positioning in applications that demand precision. The boost threshold speed above 500 steps per second provides the high performance needed for demanding solutions.
The component supports a logic supply voltage of +12 VDC with a 0.6 V margin, thus forms it well suited for electronic control setups. It accommodates multiple step modes, including 1/2 and 1/125 which address simple as well as complex uses. The rated driver current during microstep function is 3.5 A with a ±0.1 A allowance, offering a dependable mix of safety and output. Further, the chopper frequency of 20 kHz adds to its consistent and stable performance. To save energy, the design cuts idle current to 50% when inactive, increasing motor’s service life.
Further specifications of Pacific Scientific made 5410-010 variant is structured for adaptability without losing performance. Its motor power input voltage range of 18–75 VDC makes it versatile with different power sources. Also, two-phase bipolar setup with chopper drive informs strong torque delivery with low vibration levels. For status output needs, the 2.5 or 5 Vdc rating provides flexible signal options for computer interfacing. In applications requiring rapid directional shifts, its direction setup time of 100 µs enables quick response. The system’s compatibility with logic input types, including Opto-Isolated TTL or Open Collector, further strengthens safety and guarantees stable performance with varied controllers.
Frequently Asked Questions about 5410-010:
Q: How does the logic input sink current improve the reliability of the component 5410-010?
A: The specification of 10 mA at the logic input sink current guarantees stability and precision in triggering, thus preventing system errors.
Q: What advantage does the microstep current provide in fine positioning applications of Pacific Scientific 5410-010?
A: The microstep current of 5.0 ±0.1 A enables very precise and smooth motion control in whatever type of application, even the ones that are high-end or advanced.
Q: In what ways are the versatile step modes beneficial in the model 5410-010?
A: The support of multiple step modes, such as 1, 1/2, and 1/125, guarantees compatibility and fine-tuning in several motion control applications.
Q: What makes the logic supply voltage specifications of the 5410-010 reliable?
A: The logic supply voltage of +12 VDC ±0.6 V enables easy integration with many electronic circuits, as it is a standardized voltage range. This specification ensures reliable and fail-safe operation in a diverse set of devices.
Q: How does the rated driver current specification affect thermal performance in the 5410-010 unit?
A: A rated driver current of 5.0 ±0.1 A at full step operation prevents overheating of the motor and increases system stability.
