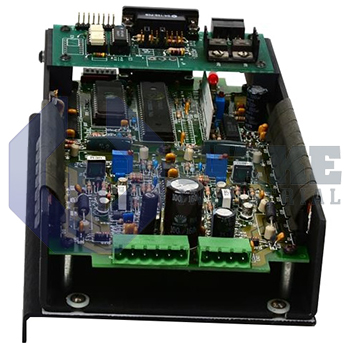

5410-003
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days
The 5410-003 is a stepper motor boasting a minimum supply voltage of 18 Vdc and a maximum microstep pulse rate of 500,000 pulses per second. Manufactured by Pacific Scientific as part of the 5000 Stepper Motors series, it features a chopper frequency of 20 kHz and a smallest step size of 1/125 step.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 5410-003 is a model from the latest category 5000 Stepper Motors of Pacific Scientific. It is simply an advanced solution that effortlessly unifies precision, strength and versatility. The minimum supply voltage required is 18 VDC which enables reliable low-power performance in various applications. The drive operates seamlessly up to a maximum supply voltage of 75 Vdc and ensure adaptability and dependable performance in varied environments. The ability to maintain rated full-step phase current at 5.0 A basically leads to significant output torque that is vital for applications requiring high productivity.
The model is designed for commercial applications, such as CNC and packaging machines that allows rapid changes in speed and direction. With a chopper frequency of 20 kHz, the component provides smooth and precise control, thereby enhancing performance. It can accommodate pulse rates of MAX full step at 40,000 pulses/s and MAX half-step at 80,000 pulses/s, resulting in excellent stepping performance and quick reaction times in dynamic environments. Furthermore, it manages an impressive microstep pulse rate of 500,000 pulses/s, facilitating high-resolution positioning and ensuring ultra-smooth movements and minimum mechanical noise.
The part 5410-003 is efficient and safe with the logic supply voltage of 12 Vdc enabling robust control electronics integration. The system can function effectively with an opto-supply voltage ranging from a minimum of 5 V to a maximum of 30 V in a variety of control setups. With a minimum ramp time of just 50 ms, the unit makes rapid adjustments with minimal risk of abrupt stops. Featuring an essential timing specifications include a step pulse minimum duration of 1.0 µs and a direction setup time of 100 µs. Also, its small step size of up to 1/125 step, the device achieves a high resolution in movement.
Frequently Asked Questions about 5410-003:
Q: What is the minimum supply voltage for the 5410-003?
A: The minimum supply voltage for the 5410-003 is 18 Vdc, ensuring dependable low-power performance in different applications. This specification enhances the compatibility of the motor with various control systems.
Q: What is the rated full-step phase current for the 5410-003 motor?
A: The rated full-step phase current for the 5410-003 module is 5.0 A, providing essential output torque for high-performance applications.
Q: What is the chopper frequency of the 5410-003 module?
A: The chopper frequency of 20 kHz in the 5410-003 permits smooth and accurate control, resulting in enhanced motor performance. This frequency also helps in reducing the chances of motor overheating and failure.
Q: What is the maximum supply voltage for the stepper motor 5410-003?
A: The maximum supply voltage of 75 Vdc allows the 5410-003 to operate efficiently in demanding environments. It also indicates the ability of the motor to adapt and perform under high-load conditions.
Q: What micro step pulse rate can the 5410-003 motor type support?
A: The 5410-003 is capable of a maximum microstep pulse rate of 500,000 pulses/s, which provides ultra-smooth movements and high precision.
