5410-002
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days
The Pacific Scientific 5410-002 is part of the 5000 Stepper Motors series and features a driver voltage input of 18–75 Vdc. The motor offers a rated phase current of 5.0 A in full-step mode and 3.5 A in microstep mode. Its chopper frequency is 20 kHz nominal and supports up to 500,000 pulses/s in microstep mode.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

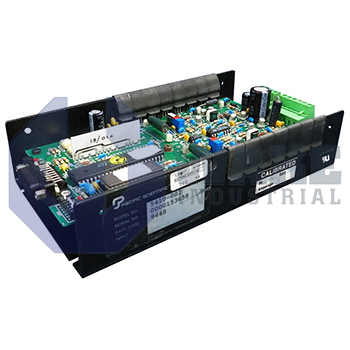

Pacific Scientific built 5410-002 is a latest Stepper Motor and is engineered for precise control in demanding applications due to high current ratings and a robust voltage range. It has a driver voltage input between 18–75 VDC that allows simply flexibility in system designs. The controller supports a high rated phase current of 5.0 ±0.1 A at full step which provides natural load handling and excellent torque delivery, forming it suitable for heavier loads. In microstepping mode, the rated phase current drops to 3.5 ±0.1 A.
Its highly efficient microstepping is aided by the microstep current boost which allows up to 1.4 times normal current above 500 steps/s. This spec is valuable for improving precision and response in fast-paced applications. Idle current reduction provides a 50% decrease when not active, which aids in energy conservation and excess heat in idle situations. An Icr delay after the last step provides a brief wait of 1 second, which leads to better performance in systems where timing is critical. The chopper frequency of 20 kHz enables excellent performance quality and allows for low-noise operation in applications with motion cycles. A minimum step pulse width of just 1.0 µs, along with a 100 µs direction setup time and a 25 µs direction hold time.
To maintain seamless operations, this 5000 Stepper Motor series model operates with a logic power input of 12 ±5% V DC which is not more than 200 mA. In addition, the opt isolator power input of 5–30 VDC guarantees safe signal transfer with a current drawing constraint of 40 mA. The device features a 0.181 in mounting slot size and mounting centers measuring 3.33 in × 7.62 in, rendering physical installation convenient in varied setups. Further, its terminal wire size of #14–#22 AWG makes it adaptable to standard wiring practices.
Frequently Asked Questions about 5410-002:
Q: What does the driver voltage input look like in model 5410-002?
A: The 5410-002 has a driver voltage input of 18–75 VDC which gives enhanced design adaptability and convenience. The substantial input range encourages integration within varied power supply configurations.
Q: What is the delay after the last movement of the Pacific Scientific’s 5410-002?
A: The Icr Delay After Last Step of 1 second in the module helps to deliver consistency in operation.
Q: What does the opt isolator power input do in the 5410-002?
A: The opt isolator power input of the 5410-002 between 5–30 VDC facilitates safeguarding between the control circuit and motor drive.
Q: How do mounting slot size and mounting centers facilitate installation of part number 5410-002?
A: It has a mounting slot size of 0.181 inches and mounting centers of 3.33 in × 7.62 in, which allow flexible installation. These standard dimensions ensure compatibility with a number of mounting surfaces and simple installation.
Q: What are the benefits of the terminal wire size of the type code 5410-002?
A: The terminal wire size of #14 to #22 AWG on the Pacific Scientific 5410-002 facilitates good and safe electrical connections. Such arrangements permit the use of most industrial wiring standards in easy and quick connections.
