5220
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days

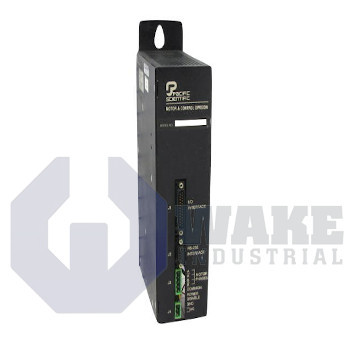

5000 Series Stepper Motor Drive manufactured by Pacific Scientific. This Stepper Motor Drive features a Functionality & Drive Configuration of Indexer with mnemonic programming language, User provided power supply and a Power Level of 2.5 A rms, 35 Vdc with integral power supply, 12 - 40 Vdc with user provided power supply.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 5220 Stepper motor driver is essential for managing the operational parameters of a drive and is utilized with the aim of converting the compatible power values of directional as well as stepped inputs. Manufactured by the renowned name of Pacific Scientific it is one of their copyrighted, user-ready intelligent software arrangements for motion drives using mnemonics. These board-level oscillator drivers provide higher functionality and drive configuration and are essential for the efficient running of the regular two-phase bipolar motors.
Making use of several innovative characteristics like the excellent solid-state components that give assurance against over-temperature, the internal SCR latch provided in it gives protection against short circuit. It also provides a High-frequency current control of the motor. The configuration is very easy as it uses the mnemonic programming language, with interactive guidance which makes using it very intuitive and easy. With a nominal input current of 2.5 Amps RMS power supply with 35 Volts DC along with the integral power supply mode of DC 12 - 40 Volts the phase value of output stream current ranges from 1 Amp up to 3 Amp with a maximum voltage of 44 Volts DC.
This TTL/CMOS compatible 5220 modular driver has a modular design and supports wide-ranging current values. The name of Pacific Scientific stands for quality and dependability and guarantees that it is made to the highest industry standards. Used mainly for their own range of equipment and Stepper Motor Drives it augments well with other similar equipment too by controlling all the specifications needed in the smart motion systems. Using its design interface it is easy to mount the 5220 drivers on the main board.
