5215

  • Rated 4.5 (14 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options

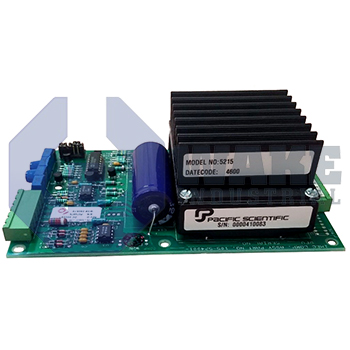

5000 Series Stepper Motor Drive manufactured by Pacific Scientific. This Stepper Motor Drive features a Functionality & Drive Configuration of Oscillator board User provided power supply and a Power Level of 2.5 A rms, 35 Vdc with integral power supply, 12 - 40 Vdc with user provided power supply.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

5215

  • Rated 4.5 (14 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
5000 Series Stepper Motor Drive manufactured by Pacific Scientific. This Stepper Motor Drive features a Functionality & Drive Configuration of Oscillator board User provided power supply and a Power Level of 2.5 A rms, 35 Vdc with integral power supply, 12 - 40 Vdc with user provided power supply.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
We offer repair service for the 5215 in 10 days
Sell Us Your Surplus
Have a 5215 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The 5215 motor driver, copyrighted by the Pacific Scientific Company is a part of their ready to run intelligent motion drive software arrangements that give functionality and drive configuration to the board level oscillator drivers. Running on a 2.5 Amps RMS basic input supply power current and a nominal 35 Volts DC and an integral mode of 12 - 40 Volts DC power supply it has the output flow current with phase value 1 Amp to 3 Amp on a DC bus with up to  44 Volts DC maximum voltage.

The 5215 modular electronics driver unit has a sleek design and can easily be mounted. Used with the primary aim of converting the directional and stepped inputs into the compatible current and power values, it is a "must-have" driver for the two-phase bipolar motors. With many innovative features like the superior quality protection against over-temperature as well as the short circuit which is achieved by using an internal SCR latch. There is also a high-frequency 17 kHz rating current control for the motor. It is used after configuration and mounting it on the main PC board.

The 5215 driver used for managing the drive’s operational parameters supports the TTL/CMOS compatible figures and covers half-step as well as full-wave properties by choosing the wide-ranging current values. The fact that it displays the well-known name of Pacific Scientific itself speaks about the quality and dependability of this driver which is made to the highest industry standards. It is well utilized for the 5000 series of stepper motor drives made to NEMA 23 specifications and which need to be controlled using these smart motion systems to accord total control.



  • 52I5

5215 Technical Specifications

Drive Type: Stepper Drive (5000)
Power Level: 2.5 A rms, 35 Vdc with integral power supply, 12 - 40 Vdc with user provided power supply
Functionality & Drive Configuration: Oscillator board User provided power supply
