Product Description:

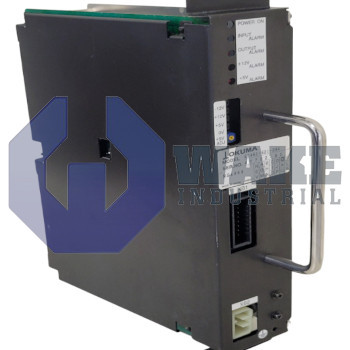

The E0451-521-046 board is manufactured by Okuma within the E0451 Power Supply Boards series. It functions as a dedicated power-conditioning module that converts utility power into regulated low-voltage rails for the central processing hardware inside an Okuma CNC controller. By supplying consistent DC potentials to logic, memory, and interface cards, the board supports reliable sequencing, data handling, and axis coordination tasks found in automated machining centers. This arrangement helps the controller maintain stable operation during startup, program execution, data exchange, and communication with connected machine subsystems.

On the input side, the unit is fed from a single-phase mains source rated at 220 VAC, so no three-line distribution is required inside the control cabinet. Internally, the board’s primary regulator targets 5.1 VDC, the setpoint that supports proper TTL logic thresholds under varying load. A galvanically separated rail labeled ISO +24 VDC is generated for sensors or opto-isolated interface circuits, which helps minimize ground loops between control and field wiring. Physical installation is streamlined because all connectors and retention points align with the designated CPU Rack, allowing the board to fit its intended slot without disturbing adjacent cards.

The outgoing side presents three user rails. The main logic bus is an adjustable +5 VDC line that can be trimmed to offset backplane voltage drop. Peripheral drivers receive a dedicated +12 VDC supply, while contactors and relays are energized by the auxiliary +24 VDC line. Classified by Okuma as a CPU Power Supply, the board separates noise-sensitive circuitry from higher-current loads without adding external converters. Separate output rails also help keep relay and peripheral loads from introducing unnecessary noise onto the logic supply.
