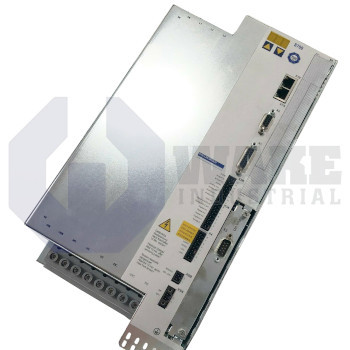

S74802-NANAPM-NA-030

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The S74802-NANAPM-NA-030 is manufactured by Kollmorgen as part of their S700 Servo Drive Series. These drives feature a Rated line power for S1 operation of 35 kVA and a Peak output current of 96 A RMS. Alongside of a Voltage rating of 208-480 V and a Maximum DC bus link voltage of 900 V.

S74802-NANAPM-NA-030

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The S74802-NANAPM-NA-030 is manufactured by Kollmorgen as part of their S700 Servo Drive Series. These drives feature a Rated line power for S1 operation of 35 kVA and a Peak output current of 96 A RMS. Alongside of a Voltage rating of 208-480 V and a Maximum DC bus link voltage of 900 V.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a S74802-NANAPM-NA-030 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen adheres to strict quality control protocols during product design and manufacturing. This has enabled the company to become the top choice of industries around the world.

The S74802-NANAPM-NA-030 is a servo amplifier from the successful S700 series. The device is used with various platforms, including servo motors, high-frequency spindle drives, and asynchronous motors. The device is used in a variety of industrial environments, so special arrangements have been made to avoid any overheating. The S74802-NANAPM-NA-030 has an automatic shut-down feature if the temperature rises beyond certain limits. A fan is also provided in the assembly that ensures the constant circulation of fresh air and continuously removes heat from the control cabinet. The basic configuration of the servo amplifier can be upgraded with the use of various expansion cards. This model supports I/O 14/08 and SynqNet expansion cards. The outer casing of the device is impenetrable by small-sized objects because it has been designed in accordance with the IP 20 ingress protection standards.

The S74802-NANAPM-NA-030 gives its best performance in a 0 ᵒC to 40 ᵒC temperature range. It works perfectly fine in areas that have relative humidity levels below 85%. This model allows users to control the motor's current, position, and speed through a digital mechanism. An intelligent positioning system ensures that the shaft's position is controlled with pinpoint accuracy. The speed controller is adjustable and gives the users complete autonomy over the shaft’s rotational speed. The S74802-NANAPM-NA-030's motion control capabilities can be enhanced by using the RS232 interface and the 2CAN expansion module. The use of a memory card can enhance the default storage of the device.  A separate slot has been provided for the memory card.

  • S-74802-NANAPM-NA-030
  • S-74802NANAPMNA030

S74802-NANAPM-NA-030 Technical Specifications

Maximum DC bus link voltage: 900 V
Peak output current: 96 A RMS
Rated line power for S1 operation: 35 kVA
Rated output current at 3x208 V: 48 A RMS
Thermal dissipation at rated current : 330 W
Thermal dissipation, Output stage disabled: Max. 25 W
Voltage rating: 208-480 V
