The P70530-SDN is manufactured by Kollmorgen as part of their P7000 Series. This series works in conjunction to phase two NEMA stepper motors; the P7000 features AC and DC operation and functions greatly with appliances in need of high speed performance.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P70530-SDN

  • Rated 4.4 (36 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

The P70530-SDN is manufactured by Kollmorgen as part of their P7000 Series. This series works in conjunction to phase two NEMA stepper motors; the P7000 features AC and DC operation and functions greatly with appliances in need of high speed performance.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

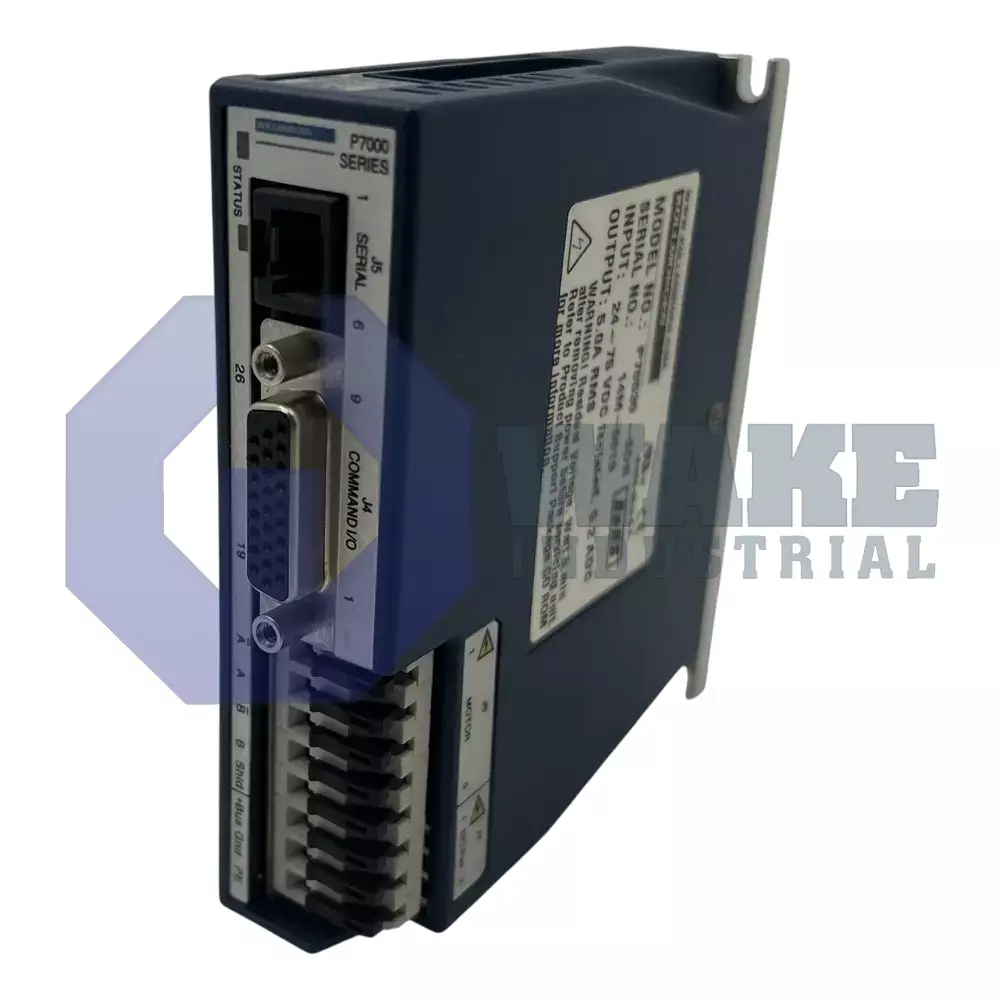

The P70530-SDN is a DC micro-stepping drive from Kollmorgen in its P7000 series of drives. The drive features 5A continuous current rating and a 1.8W power rating when the drive is disabled. The device can be mounted both horizontally and vertically to a cold plate using 8x32 screws. The unit has a pollution degree of II. It has an operating temperature of 0°C and 45°C when the drive is unmounted. If the drive makes use of convection cooling, there must be a minimum of 1-inch space on all sides. The device is available with a warranty period of one year.

The DC drive has a high-density 26-position D subminiature female connector that acts as a command I/O. The step input frequency has a maximum value of 2MHz. The ENABLE input is by default left in the open state and has a 5mA current rating. The unit makes use of a series limiting resistor if the pull-up voltage is more than 5VDC. The direction and step signals must be placed away from the motor leads. The general-purpose inputs share one optically isolated pull up/down bus. The step inputs have a minimum ON/OFF time of 800ns.

The micro-stepping drive has a dedicated fault output that indicates when it has a latched condition. When there is a fault, the LED on the front panel blinks repeatedly. The J5 serial connector on the drive supports a full-duplex RS-232 interface. The device is compatible with stepper motors that have a four-flying lead configuration. It removes the resonance associated with step motors using high-speed digital processing activity. The unit can be setup by installing the P7000Tools software and following the setup process. The drive is CE Certified and cUL Recognized. The device can be sent to the address of your choice irrespective of the country you live in.

  • P70530SDN
  • P-70530-SDN
  • P7O53O-SDN

P70530-SDN Technical Specifications

Continuous Current : 5 Amps RMS
Compatible With: Stepper Motors
Power Rating: 1.8 W
Mounting Direction: Vertically or Horizontally
Degree of Pollution: 2
Operating Temperature Range: 0 to +45 degree centigrade
Cooling Mode: Natural Convection
Female Connector : 26-position D subminiature
Maximum Step Input Frequency: 2 Mhz
J5 Serial Connector: Available

Frequently Asked Questions about P70530-SDN


Q: What is the current rating of the ENABLE input of the P70530-SDN?

A: The ENABLE input is by default left in the open state and has a current rating of 5 mA.

Q: What provision does the P70530-SDN have if the pull-up voltage exceeds 5VDC?

A: If the pull-up voltage is more than 5VDC, the unit utilizes a series limiting resistor.

Q: How are the step inputs' ON/OFF times of the P70530-SDN characterized?

A: The step inputs have a minimum ON/OFF time of 800 ns.

Q: How can users identify a fault in the P70530-SDN micro-stepping drive?

A: The micro-stepping drive displays a fault through a dedicated fault output and a blinking LED on the front panel.

Q: What interface does the J5 serial connector of the P70530-SDN support?

A: The J5 serial connector on the drive supports a full-duplex RS-232 interface.

Internal Product Review

  • ‘‘The P70530-SDN shows impressive efficiency during operation while boasting an RS-232 full-duplex interface, enhanced by high-speed digital processing.’’
