The P70530-PNN is manufactured by Kollmorgen as part of their P7000 Series. This series works in conjunction to phase two NEMA stepper motors; the P7000 features AC and DC operation and functions greatly with appliances in need of high speed performance.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P70530-PNN

  • Rated 4.6 (33 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

The P70530-PNN is manufactured by Kollmorgen as part of their P7000 Series. This series works in conjunction to phase two NEMA stepper motors; the P7000 features AC and DC operation and functions greatly with appliances in need of high speed performance.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

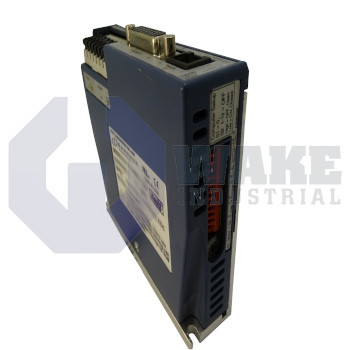

The P70530-PNN is a DC drive from Kollmorgen in its P7000 series. These drives were made for micro-stepping control. This drive can be setup by installing the P7000 Tools software and following the instructions given in the Setup Wizard. The unit will have hot surfaces and electrically charged components when it is in use. The electrical contact points of the meter must be measured after disconnecting the power source for safety purposes. The drive has a 7.1A peak DC rating and 20VDC to 75VDC voltage rating. The device comes with a one-year warranty period.

The standard drive does not feature either an electrical option or feedback. The unit incorporates step/direction and indexing functionality. The drive has a maximum cable length of 20m and an inductance in 2mH to 15mH range. The drive uses a 10A slow-blow fuse for its operation. The step inputs have a maximum frequency of 2MHz. The direction inputs feature a minimum setup time of 50µs. The input circuitry of the drive is compatible with 5-volt logic. The unit encompasses nine general-purpose inputs that can be configured according to the requirement.

The optically isolated output can be configured to highlight various details like EOT latching, active motion node, motor movement, and more. The drive is compatible with Modbus RTU. Three switches must be set depending on the load-to-rotor inertia ratio to eliminate any resonance that may be present. The unit is capable of sensing the position of the motor shaft at all times. It compares the commanded position with the actual position and stalls the motor when both the positions are apart by more than two steps. The device has 5VDC internal supply at 50mA current rating. We can ship the drive to any address worldwide through our global delivery partners.

  • P70530PNN
  • P-70530-PNN
  • P7O53O-PNN

P70530-PNN Technical Specifications

Continuous Current : 5 Amps RMS
Minimum Setup Time : 50 microseconds
Peak DC Rating: 7.1 A
Voltage Rating: 20 to 75 VDC
Electrical Option: Not available
Feedback Option: Not available
Inductance Range: 2 mH to 15 Mh
Fuse: 10 A slow blow
Maximum Step Input Frequency: 2 Mhz
General Purpose: 9 Inputs

Frequently Asked Questions about P70530-PNN


Q: How can I set up the P70530-PNN drive?

A: The drive can be set up by installing the P7000 Tools software and following the instructions in the Setup Wizard.

Q: What precautions should I take when the P70530-PNN is in use?

A: The unit has hot surfaces and electrically charged components, so always measure the electrical contact points of the meter after disconnecting the power for safety.

Q: What functionalities does the P70530-PNN incorporate?

A: The drive features step/direction and indexing functions, and its input circuitry is compatible with 5-volt logic.

Q: What kind of outputs can be configured on the optically isolated output of the P70530-PNN?

A: The optically isolated output can display details such as EOT latching, active motion node, motor movement, and more.

Q: How does the P70530-PNN unit handle discrepancies between commanded and actual motor positions?

A: It senses the motor shaft's position continuously and stalls the motor if the commanded and actual positions diverge by more than two steps.

Internal Product Review

  • ‘‘The P70530-PNN drive showcases impressive functionalities, including step/direction, logic compatibility, and the capability to constantly sense motor shaft positioning, ensuring precision in motor operations.’’
