MX93-FF-206U

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The MX93-FF-206U is manufactured by Kollmorgen as part of the MX hazardous duty series. The MX series features a holding torque of 550oz-in and a phase resistance of .90 Ohms±10%. These stepper motors are bet used for Class 1, Division 1, or group D with their rated current of 4.0Amps DC and the phase inductance of 13mH Typical.

MX93-FF-206U

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The MX93-FF-206U is manufactured by Kollmorgen as part of the MX hazardous duty series. The MX series features a holding torque of 550oz-in and a phase resistance of .90 Ohms±10%. These stepper motors are bet used for Class 1, Division 1, or group D with their rated current of 4.0Amps DC and the phase inductance of 13mH Typical.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a MX93-FF-206U to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen stands out as a reputable and reliable manufacturer of motion control aftermarket accessories that offer machine designers, users, and innovators endless possibilities of innovation. With the countless hours spent on research and development, designing, manufacturing, and rigorous testing, you are assured that the performance will be exceptional and you will efficiently achieve precision control of speed, position, and accuracy on machines that rely on complex automation. This has also been made possible by quality tools, high investment in technology, integrated systems, and skilled human resources. Exceptional durability, utter ruggedness, and cost-effectiveness also characterize Kollmorgen’s motion control components. You can find products of quality construction such as servo drives, low inertia motors, permanent magnetic motors, servo motors, mains filters, supply modules, spindle drives and also power cables in a cost-effective manner.

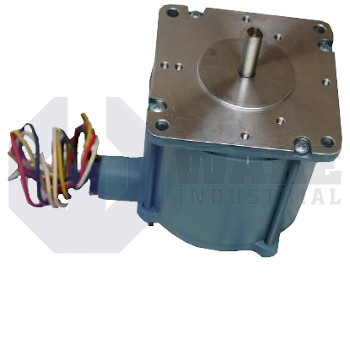

Kollmorgen’s MX93-FF-206U hybrid stepper motor falls under NEMA 34 and features either unipolar or bipolar windings. It has 2 phases, an optional rear shaft extension, and a lead wire connection. It features 200 steps per revolution, a step accuracy of one full step without a load of ± 3 % and a step angle of 1.8°. The ambient operating temperature of this unit is -20°C to +40°C, the insulation voltage is 340 VDC while the insulation class is A, 105°C.  The insulation resistance is estimated to be 100 Megohms.

The MX93-FF-206U step motor’s holding torque is estimated to be 3.88 Nm, the rated current is 4 amps DC and a phase inductance stands at 13 mH. This motor’s phase resistance is estimated to be 0.90 Ohms +/-10% while the detent torque stands at 7 Nm. The MX93-FF-206U motor’s thermal resistance stands at 2.10C/Watt, the net weight is 5kgs and the rotor inertia is estimated to be 0.187kg-m2 X 10-3.

MX93-FF-206U Technical Specifications

Configuration: Series
Detent Torque: 7.0oz-in
Holding Torque: 550oz-in
Phase Inductance: 13mH Typical
Phase Resistance: .90 Ohms±10%
Rated Current/Phase: 4.0Amps DC
Shaft Loading Axial Force: 50lb
Shaft Loading Radial Force: 25lb
Thermal Resistance: 2.1°C/Watt
Weight: 11lb
