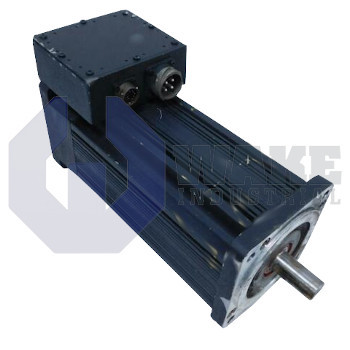

The B-604-C-B1 is a servo motor manufactured by Kollmorgen and is part of the Kollmorgen Goldline B and BH Motors series. It delivers a rated power of 8.6 kW, a rated speed of 4300 RPM, and a continuous torque of 31.2 Newton-meters at 40 degrees Celsius. The motor uses a frameless resolver for feedback, features IP65 sealing, and offers a peak torque of 86.4 Newton-meters.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The B-604-C-B1 is an AC servo motor built by Kollmorgen and supplied within the Kollmorgen Goldline B and BH Motors series. As a drive element in industrial automation, this motor converts commanded current into precise rotary motion for positioning tables, packaging axes, and similar equipment that require closed-loop velocity and torque control. Its IP65 sealing keeps out dust and low-pressure water jets so the unit can reside on machines without a separate enclosure.
During steady operation, the motor draws a continuous phase current of 39.4 A RMS, and at that level it produces 31.2 N-m of torque at the flange while the stator winding remains at 40 °C. Coupled with a rated shaft speed of 4300 rpm, these values correspond to a mechanical output of 8.6 kW, suitable for mid-power indexing or web-handling duties. The winding inductance of 3.3 mH shapes the current rise time and influences drive tuning, while a direct current resistance of 0.126 Ω contributes to copper losses under load. Screw-thread power and feedback connectors are fitted, and the mating plugs are supplied to simplify cable installation. Position feedback is provided by a frameless resolver, and the frame mounts with standard metric holes. An integral rear shaft extension is present for auxiliary encoders or brakes.
When rapid acceleration is demanded, the drive can deliver a phase surge of up to 114.8 A RMS, allowing the electromagnetic structure to generate a momentary shaft torque of 86.4 N-m. This peak reserve accelerates inertial loads quickly and overcomes short-term disturbances without stalling. A back electromotive force constant of 47.9 VRMS/kRPM indicates the voltage that the servo amplifier must track as speed rises, ensuring the 600 V-class drive bus has adequate margin. The rotor’s mass moment of 0.002034 kg-m² minimizes kinetic energy, permitting high-bandwidth motion profiles while limiting regenerative energy during deceleration.
Frequently Asked Questions about B-604-C-B1:
Q: What is the continuous torque output for the Kollmorgen B-604-C-B1 motor at 40°C?
A: This motor produces a continuous torque of 31.2 N-m at 40°C, which is suitable for demanding static load applications.
Q: What level of environmental protection does the B-604-C-B1 offer?
A: The B-604-C-B1 features IP65-rated sealing to protect against dust and low-pressure water jets.
Q: What type of feedback device does the B-604-C-B1 motor use?
A: This model uses a frameless resolver for feedback, offering precise position information.
Q: What type of mounting is provided with the B-604-C-B1 motor?
A: Standard metric mounting is used on this model for easy integration into various systems.
Q: What is the peak torque capability of the Kollmorgen B-604-C-B1?
A: With a peak torque of 86.4 N-m, this motor can handle high-torque demands during operation.
