The Kollmorgen B-402-A-23 is part of the Goldline B and BH Motors series and features a rated power of 0.97 kW and a rated speed of 1500 RPM. It offers a continuous stall torque of 6.8 N-m and a peak torque of 19.8 N-m, with an input voltage of 230 VAC and a back EMF of 136.0 VRMS per kRPM. The motor has a continuous line current of 3.0 A RMS and a max bus voltage of 320 VDC.
Internal Product Review
The B-402-A-23 is a Kollmorgen Goldline motor rated for 0.97 kW at 1500 RPM. Continuous output remains strong with 6.8 N-m continuous stall torque and 3.0 A RMS continuous line current. Peak capability reaches 19.8 N-m, a strong advantage for precise industrial motion.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

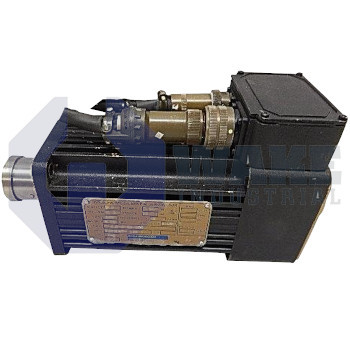

The B-402-A-23 is an AC servo motor produced by Kollmorgen within the Goldline B and BH Motors series. In motion-control assemblies, the unit converts electrical input from matched drives into rotary torque for positioning tables, packaging spindles, and similar automation axes. This model is intended to supply moderate continuous torque with short-term overload capability for dynamic indexing and repeatable speed control. It can be paired with servo amplifiers that regulate torque, speed, and position in closed-loop automation systems. Its overall operating profile suits industrial machinery that needs stable servo response without an oversized motor frame.
The motor delivers a continuous mechanical output of 0.97 kW when it is supplied with 230 VAC, drawing 3.0 A RMS under rated conditions. This current level keeps thermal loading within the continuous operating range during sustained duty. A continuous stall torque of 6.8 N-m supports holding force at zero speed, and a back electromotive force constant of 136.0 VRMS/kRPM indicates the generated voltage in relation to shaft speed. That voltage constant affects how much drive bus headroom remains as speed increases. Rated and maximum operating speed are both 1500 RPM, so the shaft can run at full nameplate speed without a separate overspeed range. Bus capacitors inside the drive may be charged to 320 VDC, enabling a peak output torque of 19.8 N-m during acceleration and short indexing moves.
For brief transients, the controller may source 9.3 A RMS, which allows higher momentary torque during starts and rapid load changes. A phase inductance of 220 mH and a DC resistance of 10.5 ohms slow the rate of current rise and help smooth inverter output. That electrical combination also helps limit abrupt current changes in the windings. The four-pole rotor supports synchronous operation, and the motor develops 7.2 N-m of stall torque at 25 °C. Stable rotor synchronization supports controlled motion at low and moderate speeds. Line insulation is approved up to 250 VRMS, which is suitable for common industrial supply environments.
