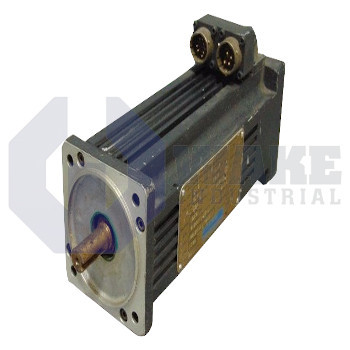

The Kollmorgen B-204-V-99-270 is a permanent magnet AC servo motor in the Goldline B and BH Motors series. This motor features a NEMA 34 frame size, operates at 3600 RPM, and provides a torque of 5.9 Nm. It uses a resolver for feedback, supports a supply voltage of 230 VAC, and is rated with IP54 protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The B-204-V-99-270 belongs to the Kollmorgen Goldline B and BH Motors series and is manufactured by Kollmorgen. As a permanent-magnet AC servo motor, it is intended for closed-loop motion control tasks such as pick-and-place heads, packaging machinery axes, and coordinated gantry drives. In those applications the motor converts electrical energy into precise torque and speed under the supervision of a matching servo amplifier, providing rapid acceleration and repeatable positioning for automated equipment.
The motor has a stator outside diameter of 100 mm, which places it in a mid-range envelope that fits compact machine frames while still allowing adequate thermal mass. The windings are designed for a 230 VAC supply, so standard three-phase mains or regulated inverters can power the axis without step-up transformers. At the shaft, the motor can deliver 5.9 Nm of continuous torque, and its electromagnetic design supports a base speed of 3600 RPM for direct coupling to moderate-ratio gear stages or belt drives. The enclosure is rated IP54, which protects internal components against limited dust ingress and water spray and allows mounting on the machine frame without a separate cabinet.
Position feedback is provided by a resolver, giving analog sine-cosine signals that remain accurate at high temperatures and resist electrical noise. Torque density is increased by using a rotor built with Neodymium-Iron-Boron magnets, which produce strong flux while minimizing rotor inertia. The mounting interface follows a NEMA 34 pattern, so the motor can fit frame-matched steppers or brushed servos without drilling new holes. For thermal protection, a thermostat embedded in the windings opens at 170 °C ±5 °C and is rated for 4 A at 120 VAC, allowing the drive to disconnect power if abnormal heating occurs.
Frequently Asked Questions about B-204-V-99-270:
Q: What feedback type is used by the B-204-V-99-270 motor?
A: This model provides resolver feedback for position and speed sensing.
Q: What is the frame size of the B-204-V-99-270 motor?
A: The frame size of this motor is 100 mm, which corresponds to a NEMA 34 standard.
Q: What kind of magnet material is used in the B-204-V-99-270 motor?
A: The B-204-V-99-270 uses Neodymium-Iron-Boron magnets in its construction.
Q: What is the maximum speed of the B-204-V-99-270 motor?
A: It achieves a maximum rated speed of 3600 RPM under specified conditions.
Q: What protection rating does the B-204-V-99-270 motor have?
A: This motor is protected to an IP54 rating, resisting limited dust and water ingress.
